Full voltage floodlight NLFL series
Feature
LED floodlights with anti-lightning protection function and anti-stroboscopic lightning circuit design; the independently developed protection circuit design has a protective effect against inrush current or surges or instantaneous power outages, and has a high insulation safety design; it adopts LEDs with high global trust in the world.
The body of the lamp is made of aluminum alloy and is lightweight at 2kg. It is very suitable for outdoor lighting, such as sign lighting and parking lot lighting. The LED adopts LED with high reliability in the world.
Applicable
Factory lighting, warehouse lighting, construction site lighting, night construction lighting, civil engineering and building site lighting.
Outdoor lighting: advertising billboards, parking lots, landscape lighting, plant lighting, surveillance photography lighting.
-
Outdoor task lighting
NLFL30+ telescopic tripod -

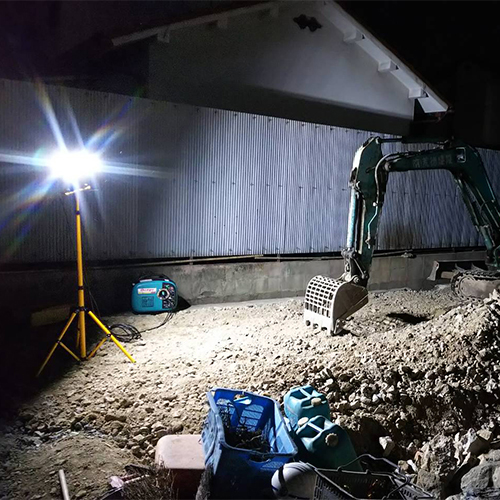

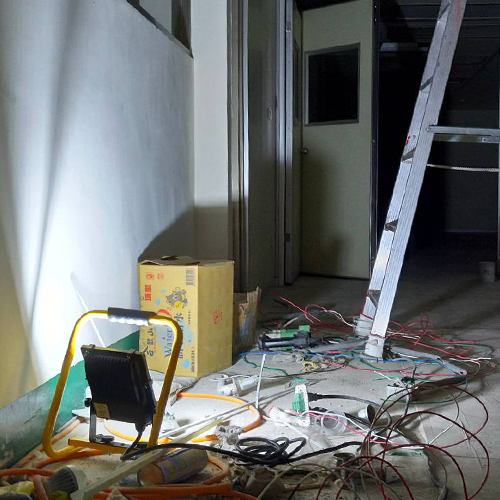

On-site work lighting

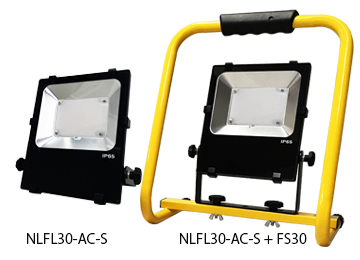

NLFL30+ portable stand -

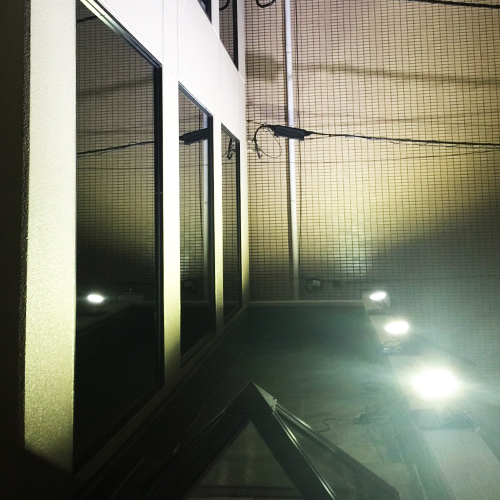

outdoor lighting
Fixed installation in outdoor lighting
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Color rendering | Ra80 |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| protection level | IP65 |
| Body material | Aluminum alloy |
| Standard wiring | 3m （VCTF0.75mm2x3C） |
| certification |
|
| Select accessories |
|---|

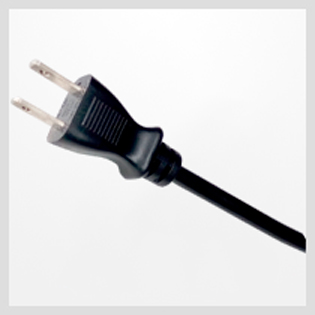

| Plug wire 3m (VCTF0.75mm2x3C） Rainproof grounding plug (corresponding voltage AC110V) |

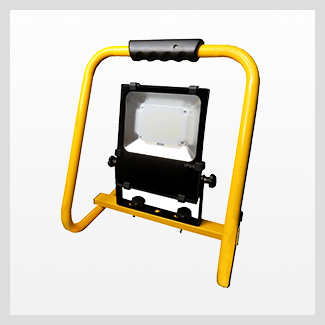

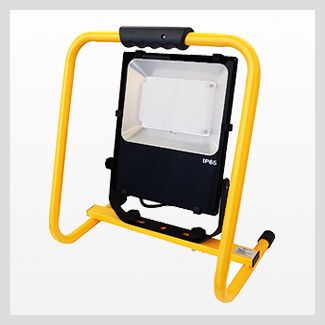

| Portable stand: FS-30 (for NLFL30)/FS-50 (for NLFL50) |

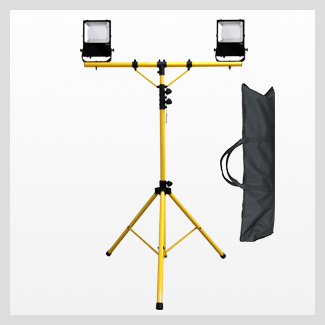

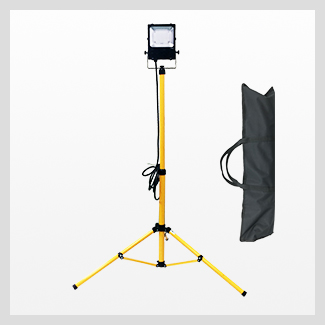

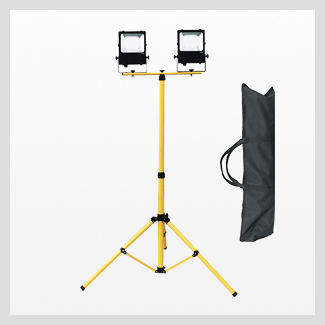

| Telescopic folding tripod: TP-20B / TP-30B (exclusive backpack) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker

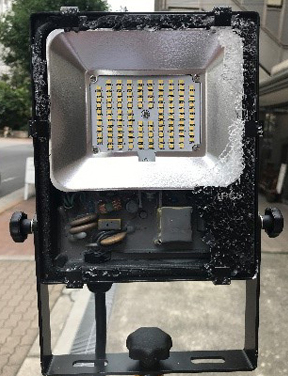

Safety designed tempered glass
Unlike traditional halogen lamps and incandescent lamps, LED lighting emits light by the heat generated by the filament, so the lamp body does not become very hot.
In the past, protective covers had to be installed to prevent burns from touching the lamps, but LED projections generate less heat and are therefore safe to touch with your hands. Therefore, it has a simple exterior design without a protective cover
The body is made of cast aluminum and has a solid structure. The glass on the surface is 4mm tempered glass. If broken, glass shards will shatter and there is no risk of injury.
No flashing
If stroboscopic occurs, the eyes will tire easily when shooting with a digital camera, and problems such as vertical streaks will occur, but the lighting of this floodlight is comfortable and does not flicker.
This
product
When taking photos of metal surfaces, the light is even and soft, with no flicker or
streaks.
Other
brand floodlights
LED light may reflect, or may flicker, and may reflect striped patterns.
Dustproof and waterproof
The protection level is IP65, dustproof and waterproof LED floodlight.
Japanese floodlights can be used with portable brackets and telescopic tripods as temporary lighting. They are suitable for lighting at various construction sites, civil engineering sites, construction sites, etc.
Power protection
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages; it also has a high-insulation safety design.
Using LEDs that are highly trusted around the world.
Lightning surge protection
Use lightning protection design to prevent lightning surges, thereby protecting the lamps from damage caused by lightning. (Surge waveform 8/20μs, may cause 10KA discharge)
If a direct lightning strike or induced lightning strike occurs, surge waves may be conducted by wires, causing damage to electronic machinery. This lighting product is equipped with a surge protector containing lightning protection.
The line withstand is ±6kV
3 times the
international standard
Withstand ±15kV to ground
3.75 times the
international standard
SPD (lightning arrester)
Protect by limiting instantaneous fluctuations in current (surge) generated by lightningLED floodlight
A general lightning strike will cause an electric shock of tens of kV or more, but this LED lamp has an SPD between the power supply IC and the ground. Therefore, if an electric shock occurs, it will flow from the breakthrough through the SPD and the ground back to the ground.
※When using this lamp, please be sure to ground it
Countermeasures against strong winds (outdoor installation)
Standard shipping style
（NLFL30/50）
Standard shipping style
（NLFL80/100/150/200）

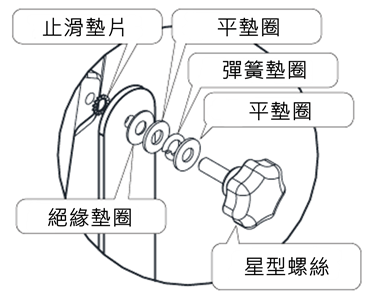

Our floodlights use star screws to facilitate adjustment of the lighting angle of the floodlight.

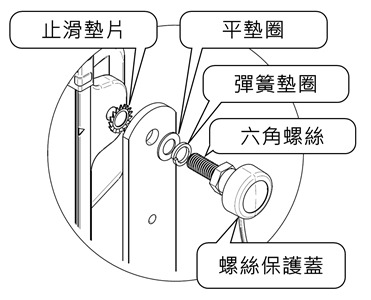

For fixed installation in outdoor situations, it is recommended to replace the includedHexagonal screwsandConcave washer gasket。
Even in strong winds, the fixed angle of the floodlight will not be affected, so it is very suitable for use as sign lights and floodlights.
[Locking screw]
Use a hex wrench to adjust the tightness of the screws.
The locking torque of each model is as follows:
NLFL30-AC：6-8Nm
NLFL50-AC：10-12Nm
NLFL80/100-AC：22-30Nm
NLFL150/200-AC：44-60Nm
[Strong wind countermeasure screw set]
NLFL30-AC: Hexagonal screw M5-15Lx2, concave washer Φ15.4x2
NLFL50-AC: Hexagonal
screw M6-17Lx2, concave washer Φ16.5x2
