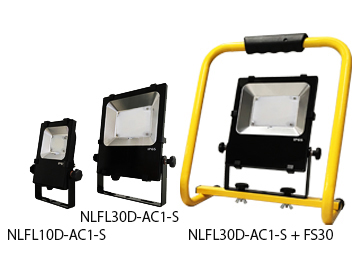

Single voltage floodlight NLFL-D series

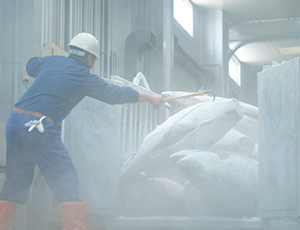

• Freezer interior lighting

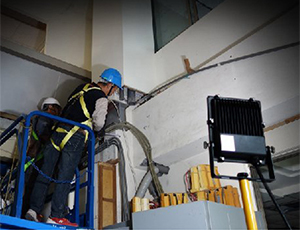

• Decoration task lighting

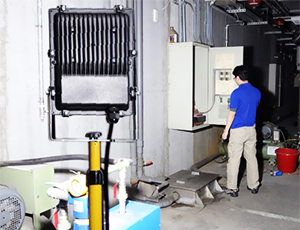

• Decoration task lighting

color temperature	5,700K
life expectancy	Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70%
performance	Ra80
Use temperature	-40℃～40℃ (Below -20℃, please use silicone wires)
protection level	IP65
Body material	Aluminum alloy
Power consumption	8.5W / 30W / 50W
Standard wiring	3m （VCTF0.75mm2x2C）
certification

Select accessories	Telescopic folding tripod: TP-20B (including carrying bag) / TP-30B (including carrying bag)
	Portable stand: FS-30 (for NLFL30)/FS-50 (for NLFL50)
	Lightning protection circuit board (not applicable to NLFL10D)
	3m cord with plug
	Rainproof grounding strap plug wire 3m (VCTF0.75mm2X3C）
	Silicone power cord (for use in environments below -20°C) AC110V

Floodlight NLFL-D series purchase manual

low temperature environment

Provides accessory options of low-temperature silicone power cords, suitable for a variety of low-temperature environments.

Safety designed tempered glass

The main body is cast aluminum and has a solid structure. The glass on the surface of the lamp is 4mm tempered glass, if the glass breaks, the glass shards will shatter, there is no risk of injury.

Flicker-free lighting

Flicker can cause eye fatigue easily, and problems such as vertical stripes can occur during shooting with digital cameras, mobile phones, etc., making shooting difficult. This product is comfortable and does not flicker.

Images captured by digital cameras, mobile phones, and surveillance video recorders under flickering lights have vertical streaks that make it difficult to see a clear picture.

Power protection

Using constant current driving method, the brightness of the lamp can be kept constant even if the input voltage changes. The independently developed protection circuit design protects against inrush current, breakthrough or instantaneous power outage.

Lightning protection circuit (optional)

Lightning surge protection is also one of the indicators of the reliability of LED lamps. However, there are not many manufacturers that can truly protect against lightning surges. The LED floodlights developed and designed by Japan Use lightning protection design to prevent lightning surges, thereby protecting the lamps from damage caused by lightning. (Surge waveform 8/20μs, may cause 10KA discharge) If a direct lightning strike or induced lightning strike occurs, surge waves may be conducted by wires, causing damage to electronic machinery. This lighting product requires the installation of a surge protector containing lightning protection at high cost.
※NLFL10D cannot purchase lightning protection circuit board.

Radio interference

This product will not interfere with other electronic equipment and will not generate electromagnetic waves. Please feel free to use it on electronic equipment and machines that require lighting.

Other features

Lightweight and easy to carry, suitable for indoor task lighting. In addition, it can also be used in low-temperature environments and can also be used as lighting for refrigerators.

The portable stand and tripod can be shared, which is very convenient; it uses the world's most trusted LED.

Gentle light source without flicker

The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.

Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.

※The picture below shows the situation under the light source of a Nikki product.

[General LED] Flickers and streaks may be observed during photography

[Nikki product] Mild and even light, no flicker

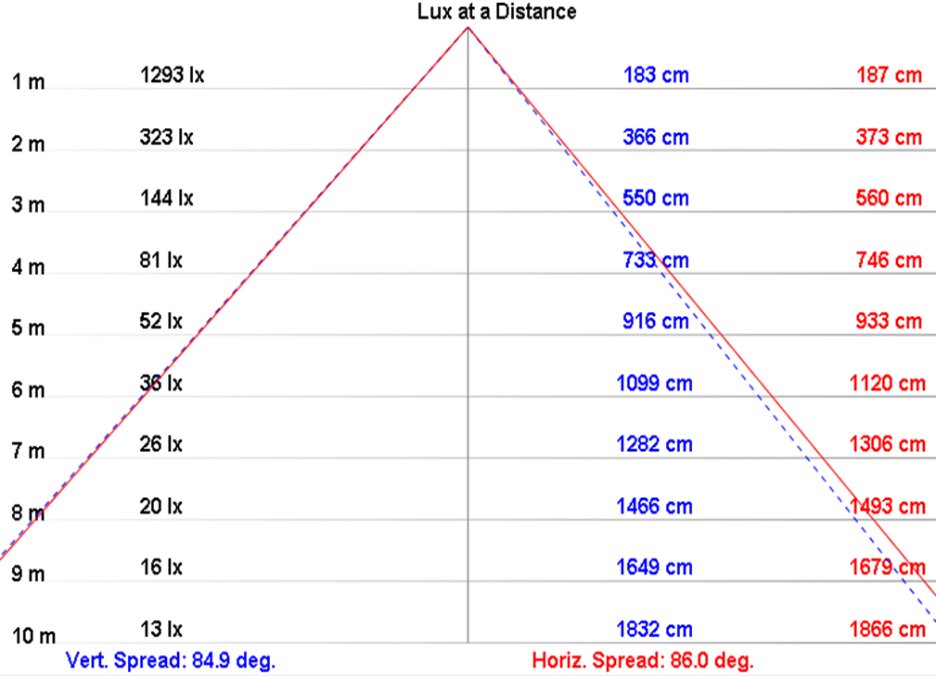

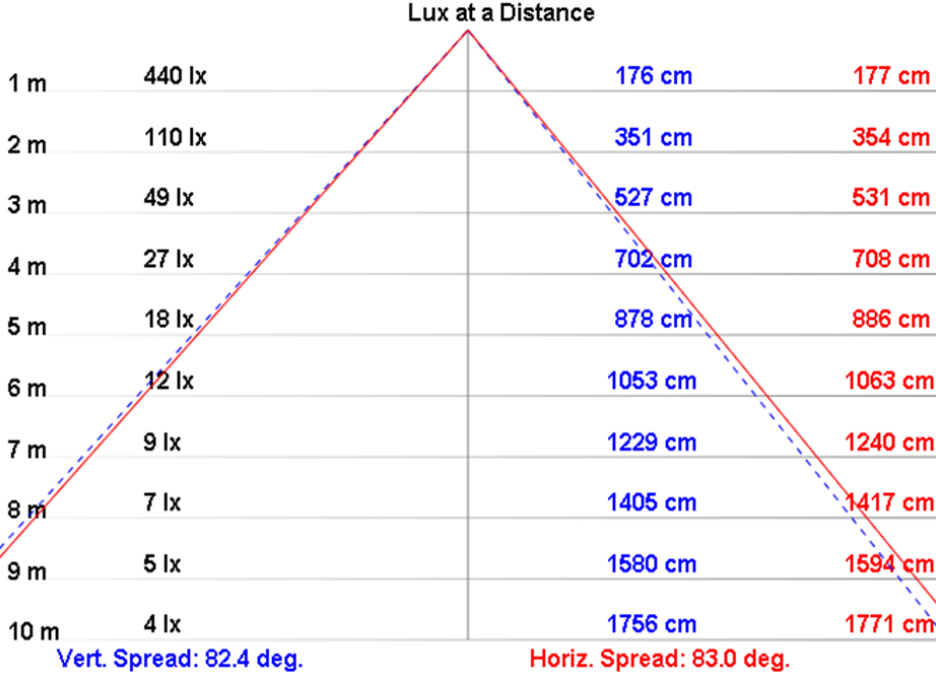

Standard model list

"-S" This model has a lens hood. ◆NLFL10D cannot be equipped with a lightning protection circuit board. This model is only for indoor use.

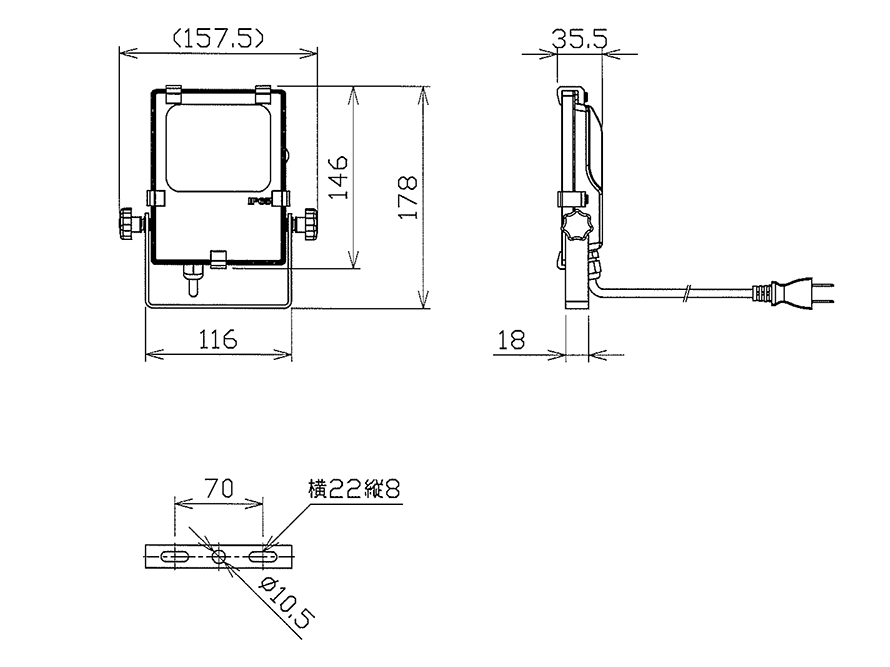

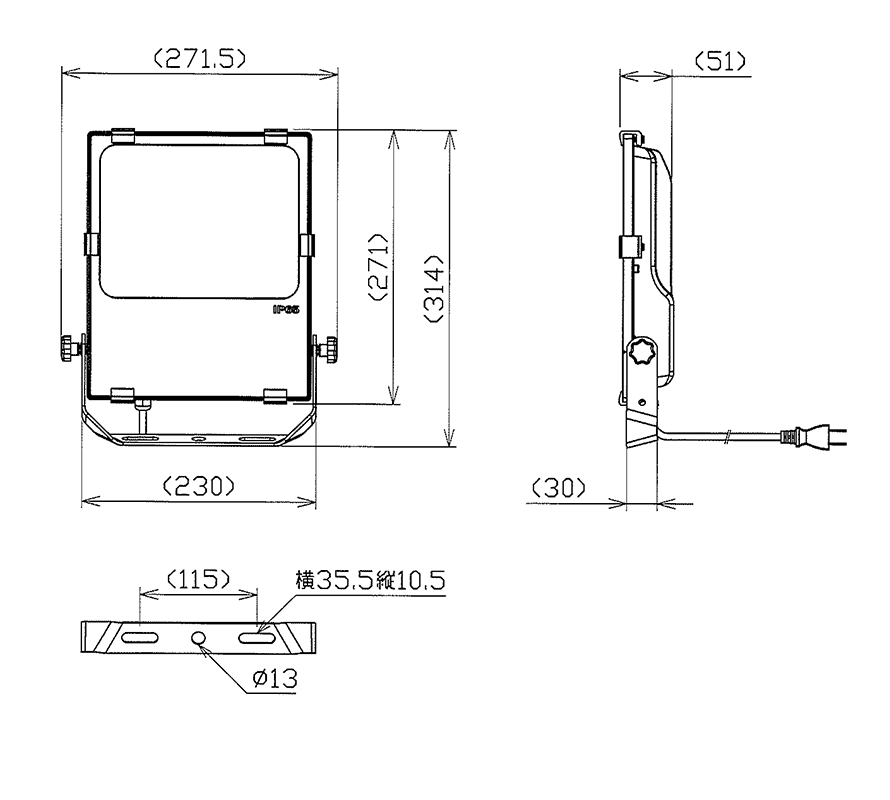

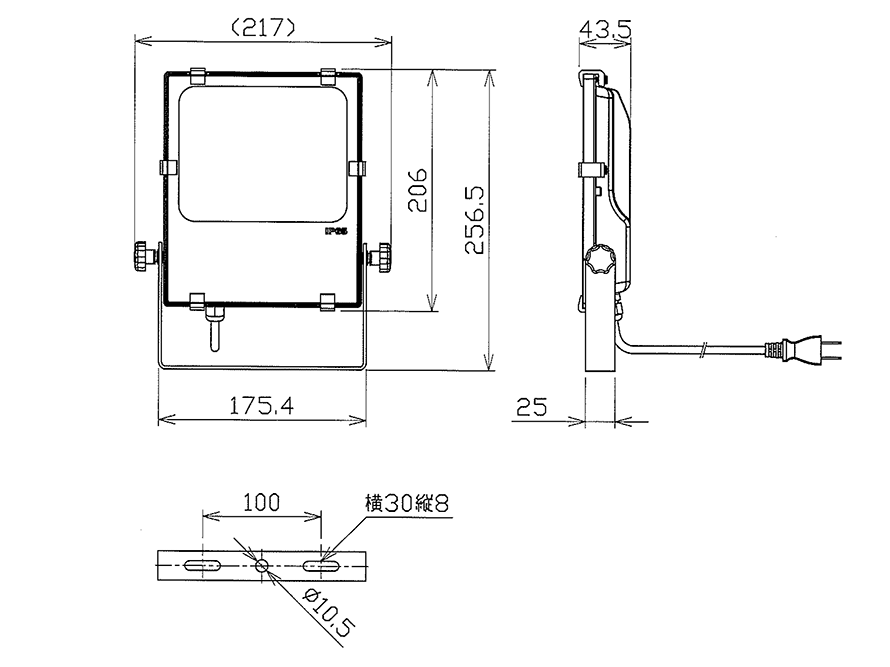

Dimensional drawing

Accessories
