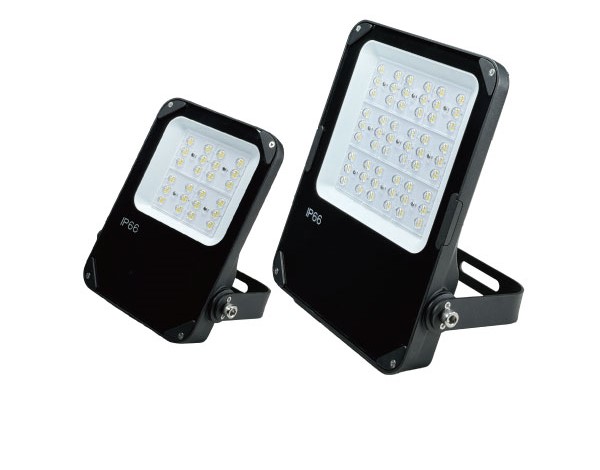

NLFL-TS Tripod LED Floodlight
Features
This floodlight is designed for both indoor and outdoor use, including outdoor venue lighting and construction site lighting.
The die-cast aluminum body provides efficient heat dissipation, faster cooling, and longer fixture service life.
The stable, flexible bracket allows easy angle adjustment and securely supports the light.
The optical lens enhances light distribution.
Applications
Factory Lighting, Indoor and Outdoor Parking Lots, Construction Site Lighting, Home Garden Lighting, and Civil Engineering Site Lighting.

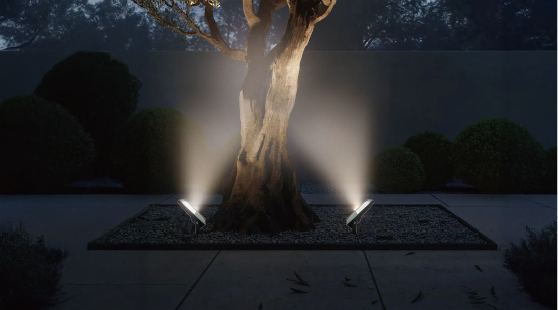

Outdoor Garden Lighting

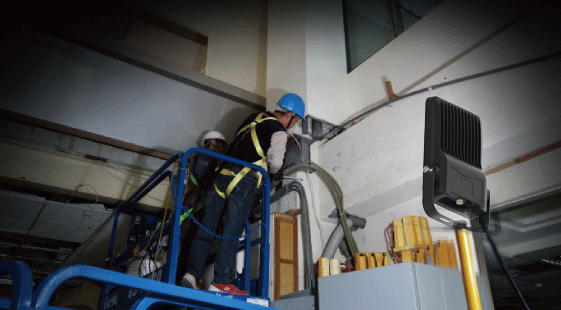

Construction Site Lighting
Specifications
| Color Temperature | 5,700K |
|---|---|
| Housing Material | Aluminum Alloy |
| Light Distribution Angle | 90° |
| Service Life | Ambient temperature 25℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Color Rendering Index | Ra80 |
| Operating Temperature | -10℃～40℃ (referring to the condition without freezing) |
| Protection Rating | IP65 |
| Standard Wiring | L:3M (<VDE>3C X 0.75mm²) |
| Certification |
|
| Optional Accessories | Telescopic folding tripod: TP-20B / TP-30B (exclusive backpack) |
|---|

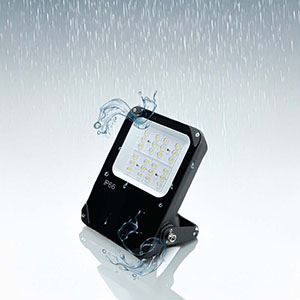

Dustproof and waterproof
The IP65 protection rating supports dustproof and waterproof LED floodlight applications.
Designed for indoor and outdoor lighting in stadiums, parking lots, civil engineering sites, and construction sites.
IP65 dustproof and waterproof
Protective housing

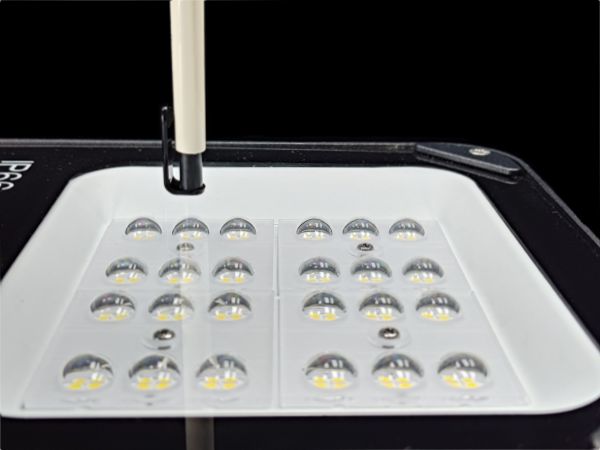

Compared with other brand floodlights, this model adds an outer tempered glass cover to protect the internal components. For outdoor use, the cover helps reduce damage from wind and sunlight while extending fixture service life.
This

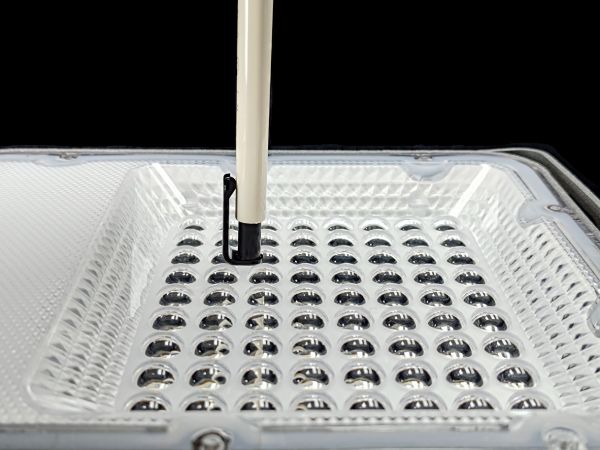

productThe hard, scratch-resistant tempered glass outer cover helps protect the internal lamp.
Other
brand floodlightsWithout an outer cover, the exposed plastic lens can age more quickly and lose its protective function.
Safety designed Tempered Glass
The front surface uses 4mm tempered glass. If broken, the glass fractures into small pieces to help reduce injury risk.
Tempered glass breaks into small fragments for safer cleanup.
Ordinary glass can break into sharp fragments that may cause injury.
Flicker-free lighting
Stroboscopic flicker can cause eye fatigue and vertical streaks during digital camera capture. This floodlight provides comfortable, low-flicker illumination.
This product
When taking photos of metal surfaces, the light is even and soft, with no
flicker or streaks.
Other brand floodlights
LED light may reflect, or may flicker, and may reflect striped
patterns.

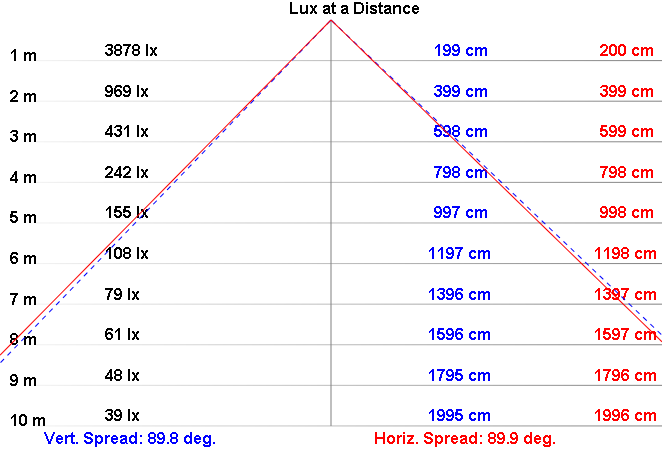

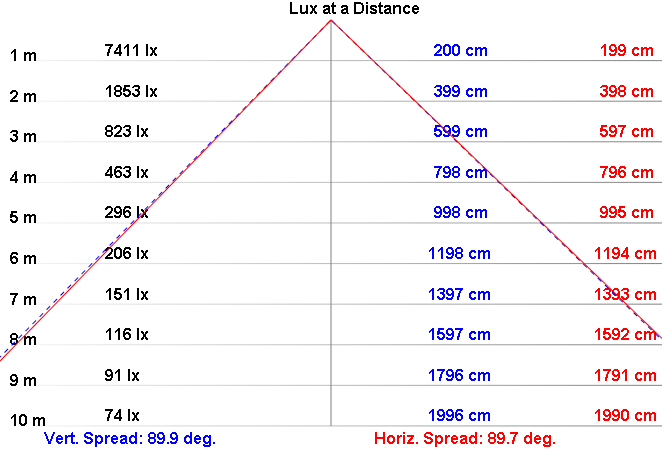

Light distribution curve data
NLFL-50TS-AC-09
NLFL-100TS-AC-09
Dimensions
NLFL50TS-AC-09
NLFL100TS-AC-09
