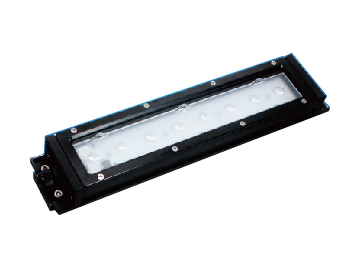

NLE flat series
Feature
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased..
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages. It also has high insulation properties and is most suitable for internal lighting of machine tools.
It uses LEDs that are highly trusted in the world. The body is made of aluminum and the front is made of heat-treated glass. The whole is sturdy and not easy to be damaged.
Applications
Machine tool internal lighting, industrial machinery lighting, equipment machinery lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Operating temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -40℃～40℃ |
| protection level | ( IP67 ） |
| power supply | DC (direct current power supply) |
| Standard wiring | 3m （VCTF0.5mm2x2C） |
| Certification |
|
| Select accessories | Body color: silver Wire protective cover Angle adjustment base (ND-P01) AC/DC power supply (ND-PM243) (operating temperature -10C~40C) refers to the non-freezing condition |
|---|
Standard model list
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption | |
|---|---|---|---|---|---|---|
| NLE10CN-DC-L1 | PDF DXF | 750 lm | 1,100 lx | DC24V | 7W | |
| NLE13CN-DC-L1 | PDF DXF | 950 lm | 1,700 lx | 10W | ||
| NLE20CN-DC | PDF DXF | 1,400 lm | 1,850 lx | 15W | ||
| NLE26CN-DC | PDF DXF | 1,900 lm | 3,350 lx | 20W | ||
| ◆ | NLE40C-DC | PDF DXF | 2,850 lm | 3,250 lx | 28W | |
| ◇ | NLE10SN-DC | PDF DXF | 750 lm | 205 lx | 7W | |
| ◇ | NLE13SN-DC | PDF DXF | 950 lm | 285 lx | 10W | |
◇The products marked here are customized products.
◆This printed model cannot be used with AC/DC power supply, operating temperature: -10℃~40℃ (referring to non-freezing conditions).
Appearance dimension drawing

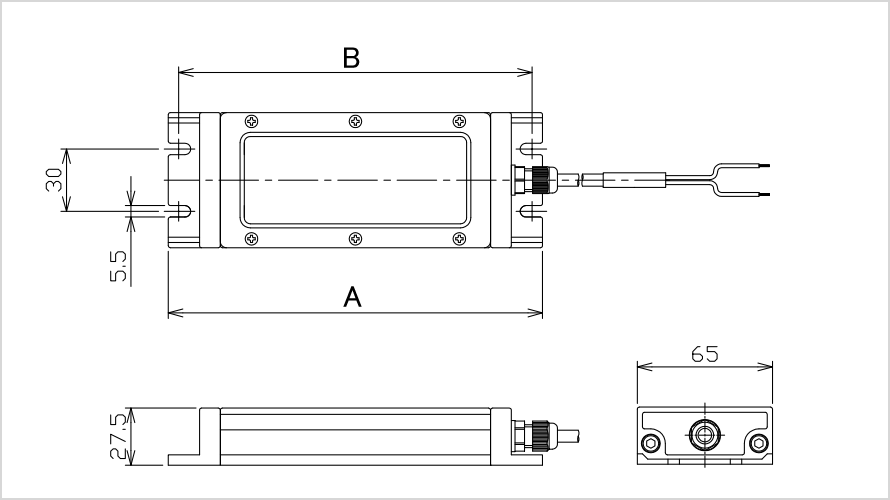

Standard type
| model | A | B |
|---|---|---|
| NLE10CN／NLE10SN | 180 | 170 |
| NLE13CN／NLE13SN | 330 | 320 |
| NLE20CN | 330 | 320 |
| NLE26CN | 530 | 520 |
| NLE40C | 530 | 520 |

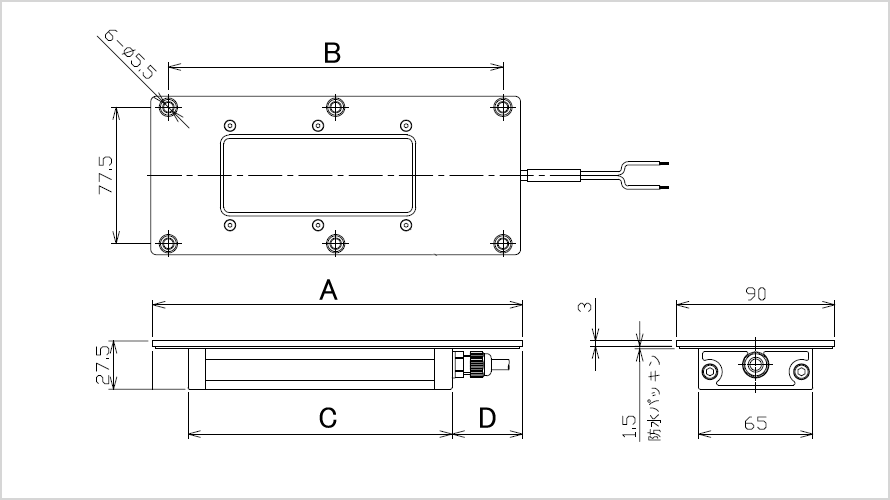

Embedded
| model | A | B | C | D |
|---|---|---|---|---|
| NLE10CNF／NLE10SNF | 210 | 190 | 150 | 40 |
| NLE13CNF／NLE13SNF | 360 | 340 | 300 | 40 |
| NLE20CNF | 360 | 340 | 300 | 40 |
| NLE26CNF | 560 | 540 | 500 | 35 |
| NLE40CNF | 560 | 540 | 500 | 35 |
Select accessories
-

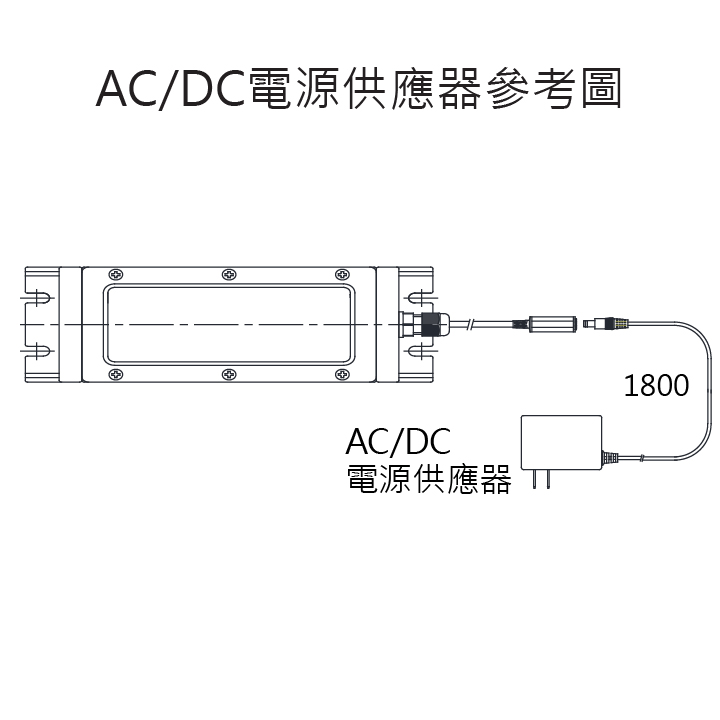

wall power supply
- Model: ND-PM243
- Certification: PSE FCC
- Input voltage: AC100～240V
- Output voltage: DC24V
- Wire length: 1.8m
- Output plug shape: DC25mm
- ※Drawing "Wear it down"
-
Wire protective cover
- Material: nylon
-
fixed magnet
- Model: ND-P04
- Overall dimensions: 41Lx28Wx8H
- Quantity: 2 pieces/group
- Screws M4x6L 4 pieces
- ※Drawing "Wear it down"
-
Angle adjustment base
- Model: ND-P01
- Quantity: 2 pieces/group
- Screw: M5*2
- Adjustment angle: ±45°
- ※Drawing "Wear it down"
-
Wire joint processing
- Jack processing for wire connector connection
Series selection method
| model | Model | LED | shape | power supply | Glass | lens | Optional |
|---|---|---|---|---|---|---|---|
| NLE |
|
|
|
|
|
|
|
