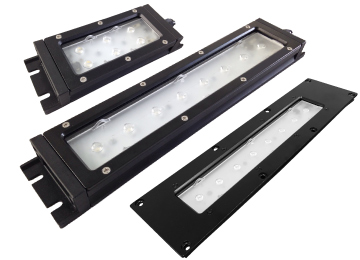

NLE flat series (waterproof LED lighting)
Feature
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages. It also has high insulation properties and is most suitable for internal lighting of machine tools.
It uses LEDs that are highly trusted in the world. The body is made of aluminum and the front is made of heat-treated glass. The whole is sturdy and not easy to be damaged.
Applicable
Internal lighting of machine tools, industrial machinery lighting, equipment machinery lighting, etc.
In environments where oil and gas are particularly heavy, you may consider adding accessories made of oil-resistant materials to extend the service life of the lamp.
Video introduction
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP67 |
| power supply | DC |
| Standard wiring | 3m （VCTF0.5mm2x2C） |
| Certification |
|
| Select accessories | Body color: silver |
|---|---|
| Wavelength: 591 nm | |
| oil resistant wire Fluorine oil seal |
|
| The wire protective cover is suitable for standard type (single side corrugated pipe
connector) The wire protective cover is suitable for standard type (double-sided corrugated pipe connector) |
|
| Angle adjustment base (ND-P01) Fixed magnet (ND-P04) AC/DC power supply (ND-PM243) (24W) AC/DC power supply (ND-PM247) (60W) Switch control line (ND-SW01) (Using temperature -10℃~40℃) Refers to the situation without freezing |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
NLE series measures illumination

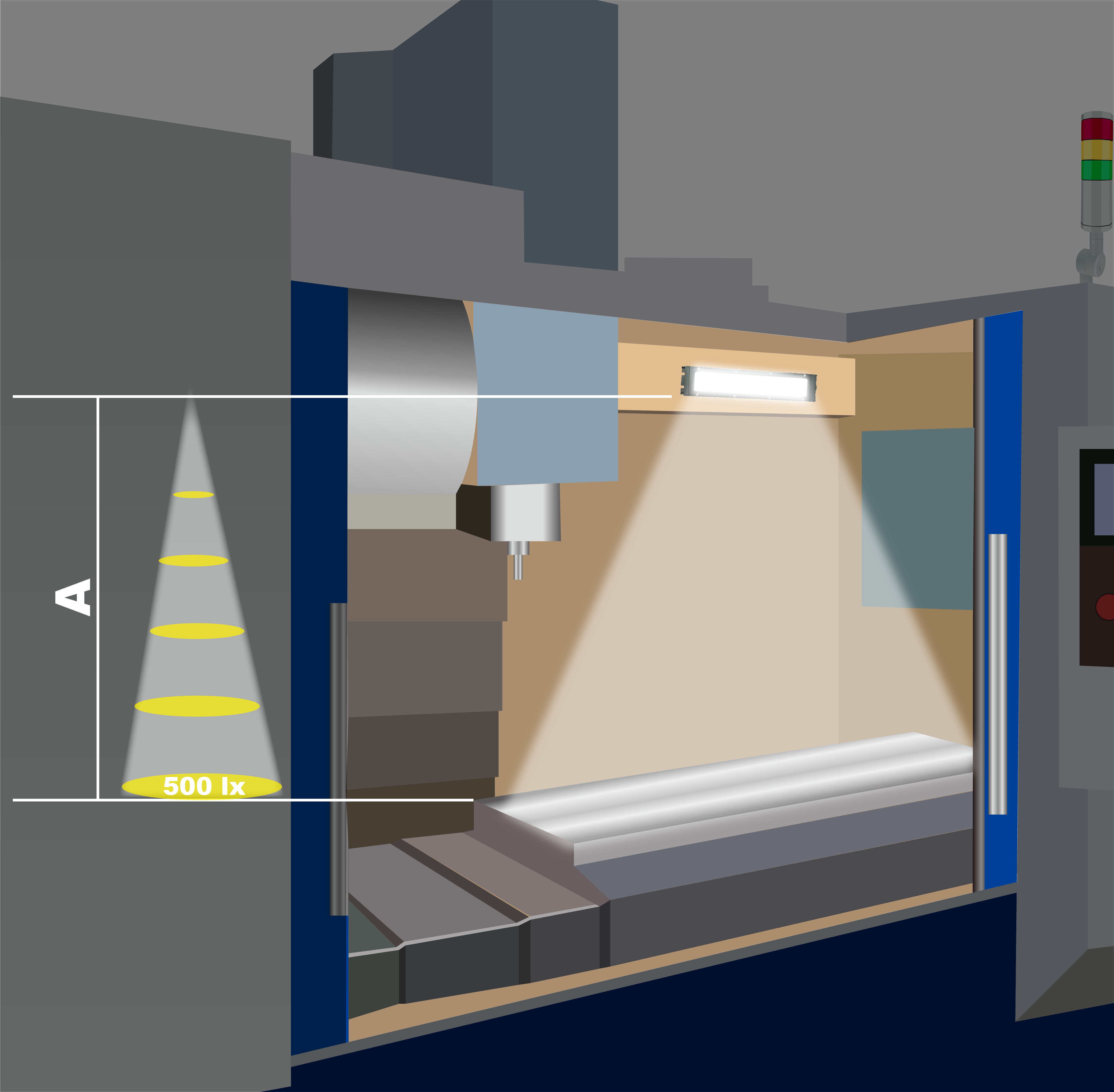

Measure the distance directly below the lamp where the illumination is 500lx (A)
| model | A | Irradiation area at 500lx |
|---|---|---|
| NLE10CN-DC-L1 | 1.48m | 1.07m² |
| NLE13CN-DC-L1 | 1.84m | 1.02m² |
| NLE20CN-DC | 1.92m | 2.31m² |
| NLE26CN-DC | 2.65m | 2.02m² |
| NLE40C-DC | 2.83m | 4.45m² |
| NLE10SN-DC | 0.66m | 2.09m² |
| NLE13SN-DC | 0.77m | 3.23m² |
| NLE26SN-DC | 1.12m | 7.22m² |
※According to JIS Z9110:2010 specifications, the illumination of the work surface in the workplace needs to be 500lx to meet the standards of working environment lighting.
Light distribution curve data

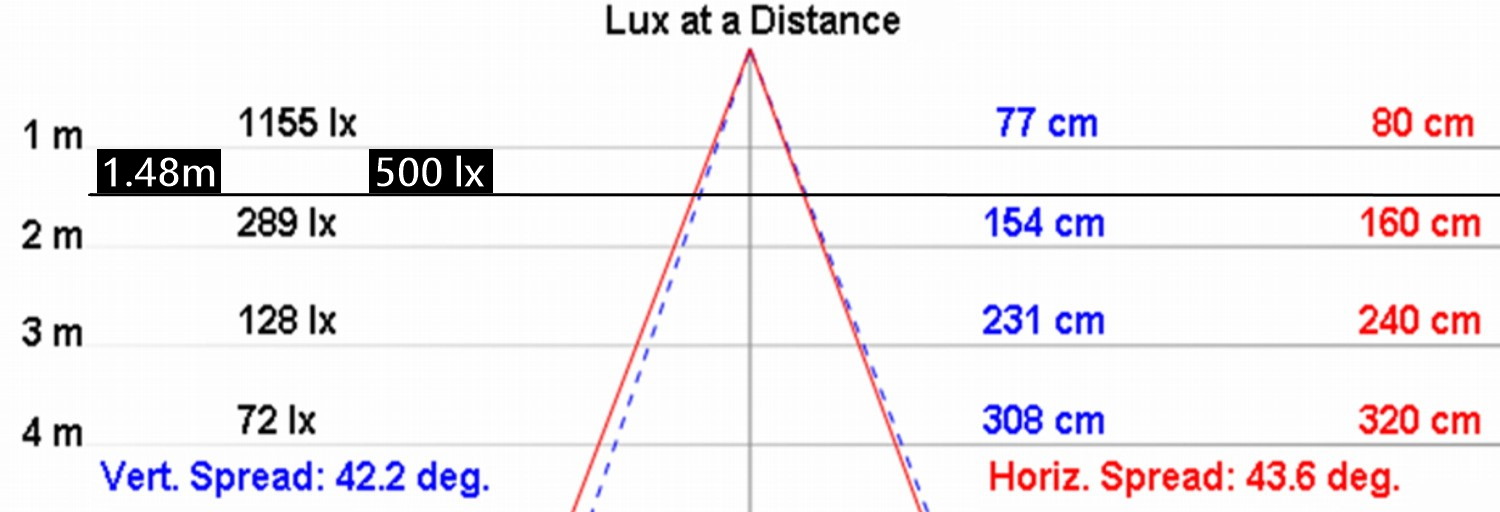

NLE10CN-DC-L1

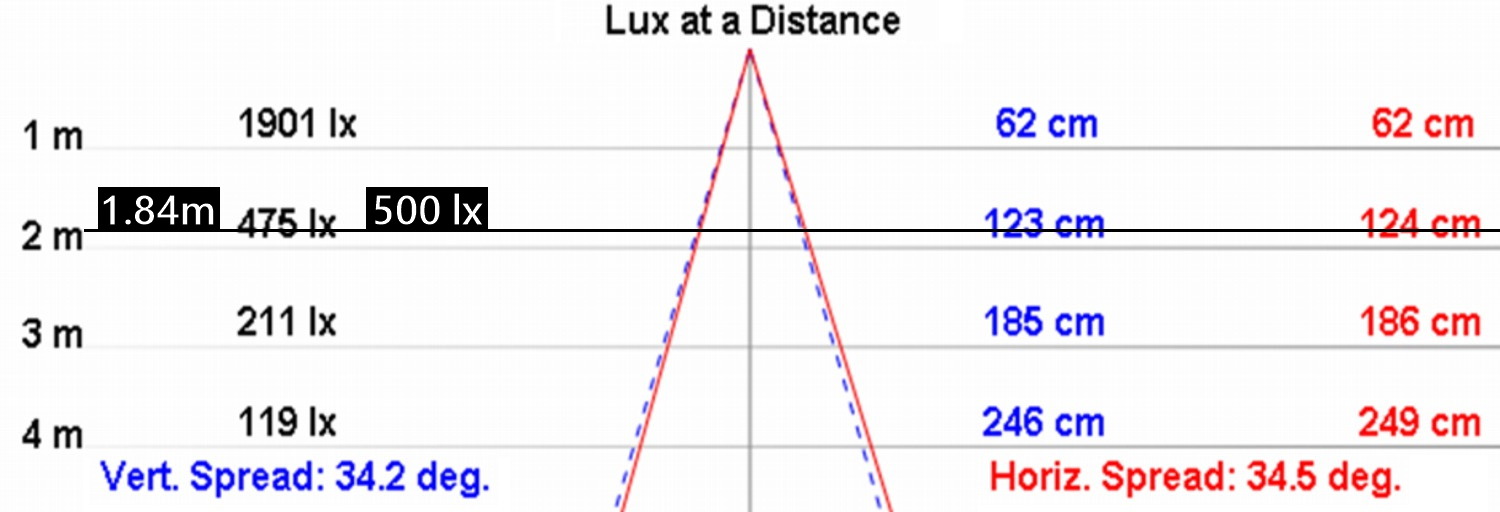

NLE13CN-DC-L1

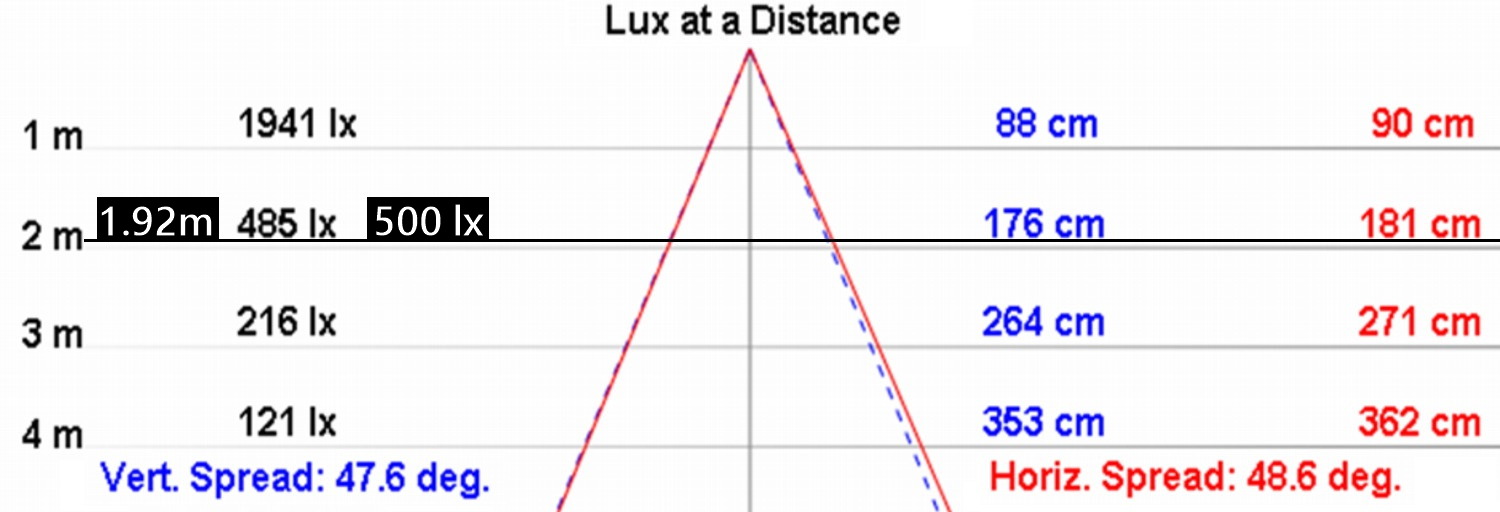

NLE20CN-DC

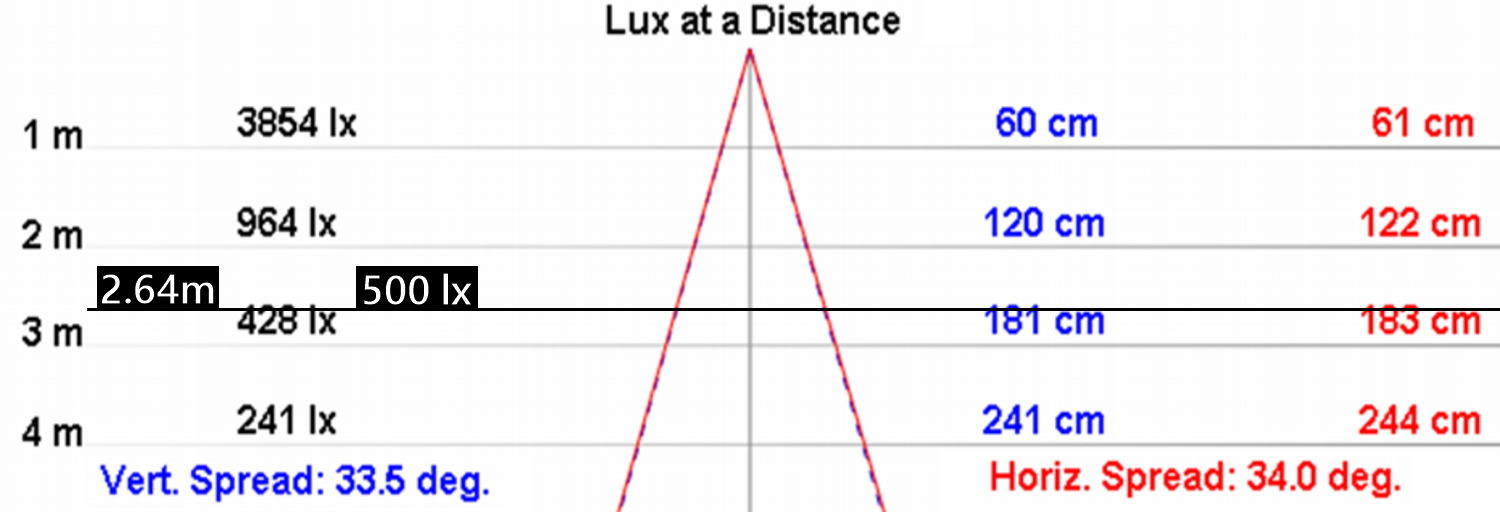

NLE26CN-DC

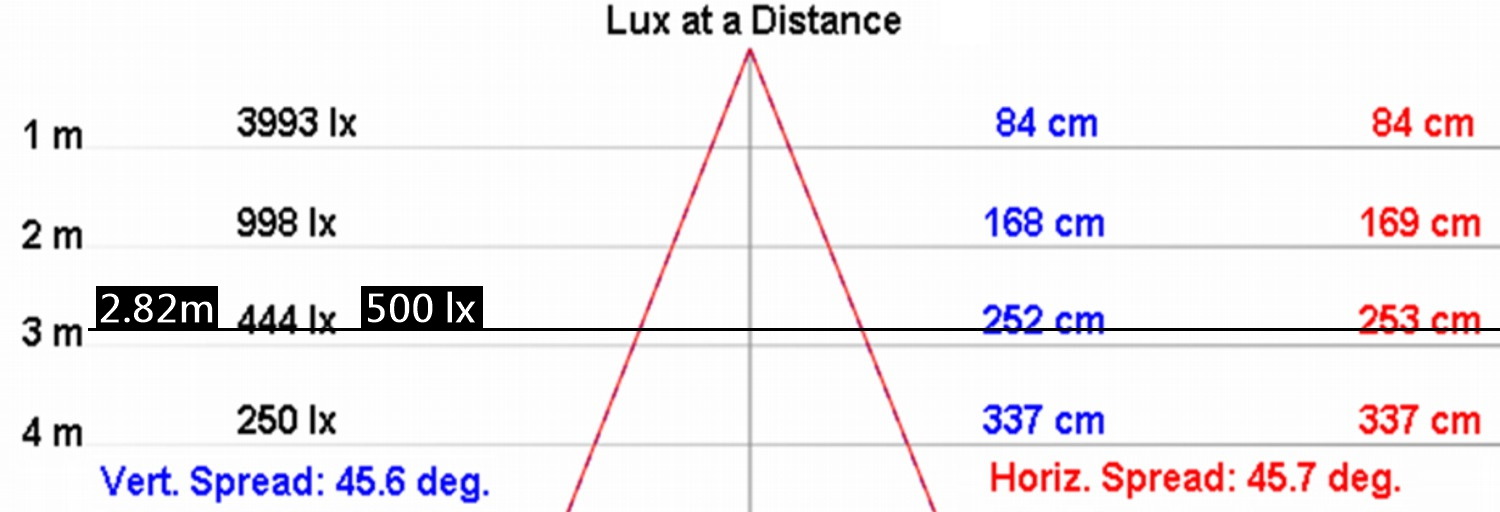

NLE40C-DC

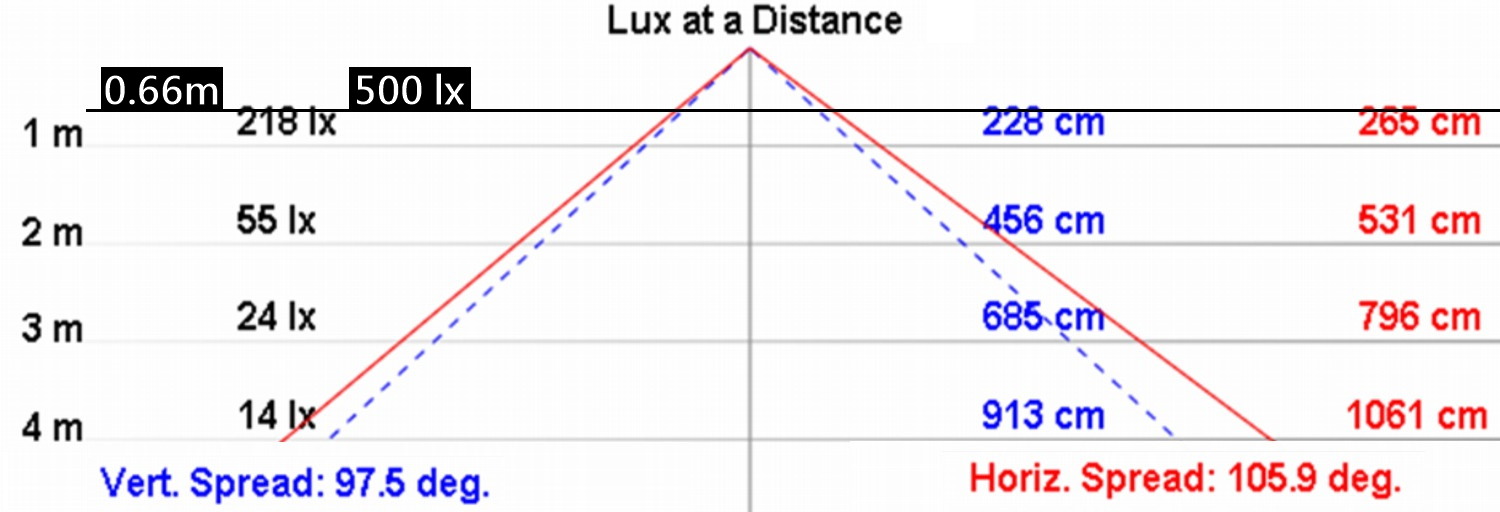

NLE10SN-DC

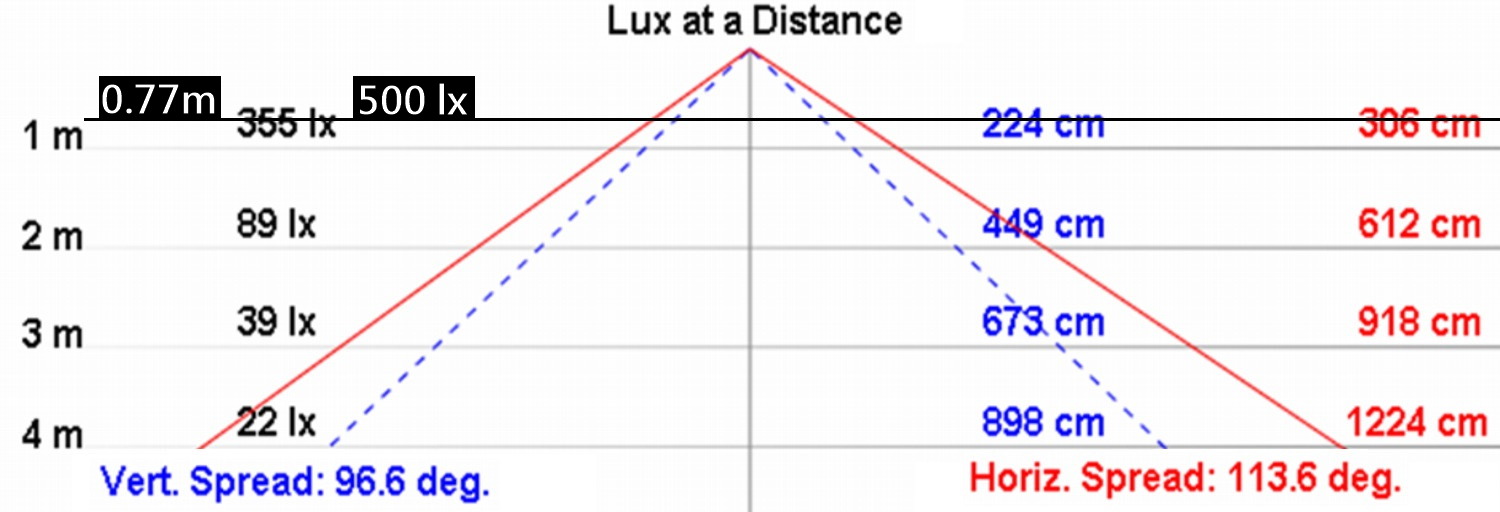

NLE13SN-DC

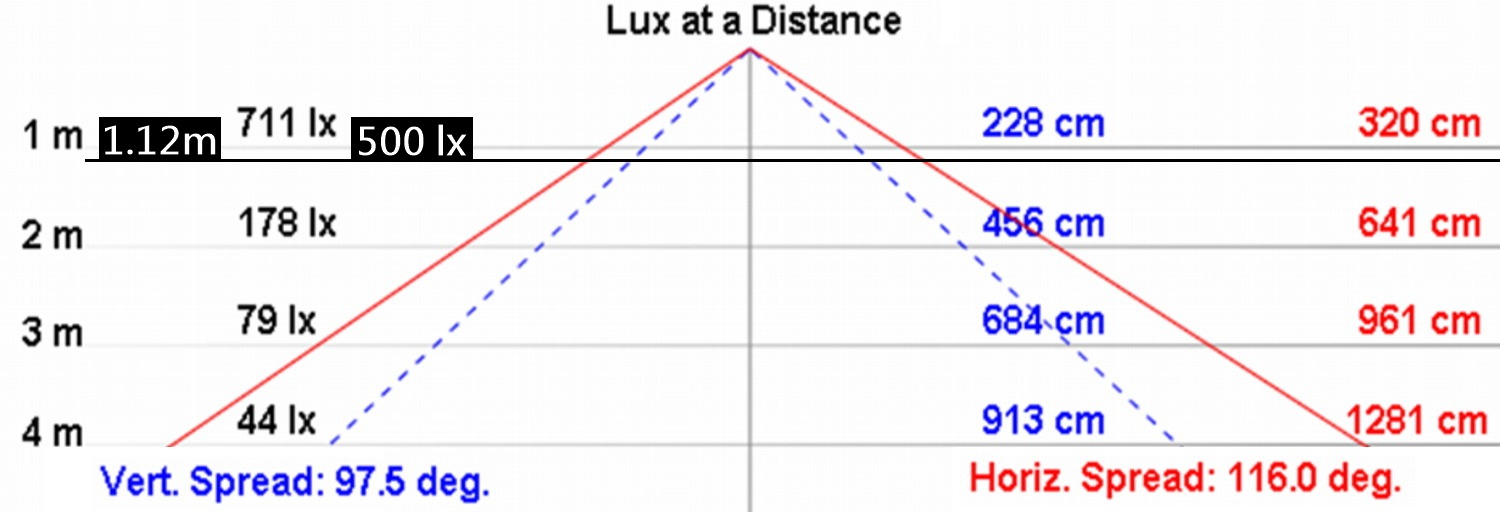

NLE26SN-DC
Standard model list
| model | drawing | Drawing (embedded) | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|---|
| NLE10CN-DC-L1 | PDF DXF 3D STEP | PDF DXF 3D STEP | 800 lm | 1,100 lx | DC24V | 7W |
| NLE13CN-DC-L1 | PDF DXF 3D STEP | PDF DXF 3D STEP | 1,000 lm | 1,700 lx | 10W | |
| NLE20CN-DC | PDF DXF 3D STEP | PDF DXF 3D STEP | 1,500 lm | 1,850 lx | 15W | |
| NLE26CN-DC | PDF DXF 3D STEP | PDF DXF 3D STEP | 1,900 lm | 3,500 lx | 20W | |
| NLE40C-DC | PDF DXF 3D STEP | － | 3,150 lm | 4,000 lx | 28W | |
| NLE10SN-DC | PDF DXF 3D STEP | － | 600 lm | 220 lx | 7W | |
| NLE13SN-DC | PDF DXF 3D STEP | － | 770 lm | 300 lx | 10W | |
| NLE26SN-DC | PDF DXF 3D STEP | － | 1,600 lm | 630 lx | 20W |
※If the power supply is changed to AC100-240V, please select an AC/DC power supply.

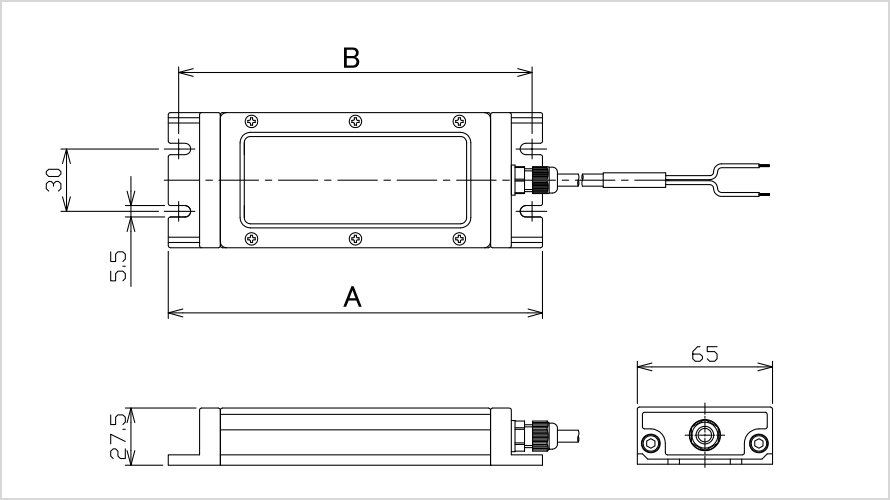

Dimensional drawing
Standard type
| model | A | B |
|---|---|---|
| NLE10CN／NLE10SN | 180 | 170 |
| NLE13CN／NLE13SN | 330 | 320 |
| NLE20CN | 330 | 320 |
| NLE26CN／NLE26SN | 530 | 520 |
| NLE40C | 530 | 520 |

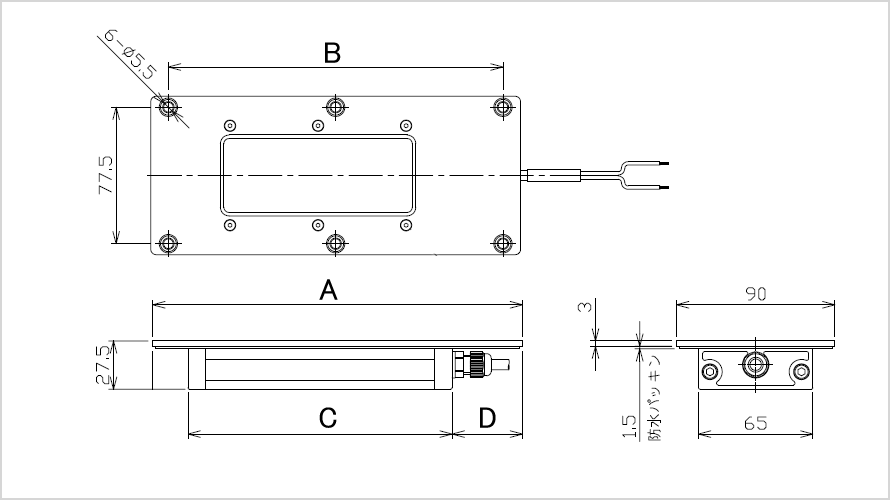

Embedded
| model | A | B | C | D |
|---|---|---|---|---|
| NLE10CNF／NLE10SNF | 210 | 190 | 150 | 40 |
| NLE13CNF／NLE13SNF | 360 | 340 | 300 | 40 |
| NLE20CNF | 360 | 340 | 300 | 40 |
| NLE26CNF | 560 | 540 | 500 | 35 |
| NLE40CF | 560 | 540 | 500 | 35 |
Optional accessories for NLE flat work light
-
wall power supply
- Model: ND-PM243
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: maximum 24W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
wall power supply
- Model: ND-PM247
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: Max 60W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Wire protective cover
- Material: nylon
- Wave pipe joint: bilateral/unilateral
-
fixed magnet
- Model: ND-P04
- Overall dimensions: 41Lx28Wx8H
- Quantity: 2 pieces/group
- Screws M4x6L 4 pieces
- ※Drawing "download"
-
Angle adjustment base
- Model: ND-P01
- Quantity: 2 pieces/group
- Installation screw size: M5*2
- Adjustment angle: ±45°
- ※Drawing "download"
-

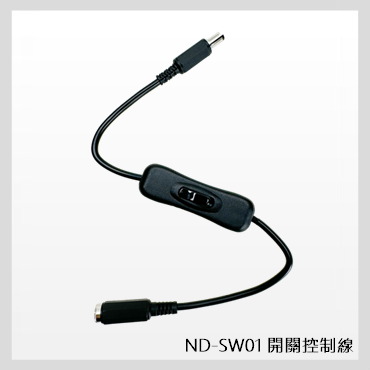

switch control line
- Model: ND-SW01
- Wire length: 0.3m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-

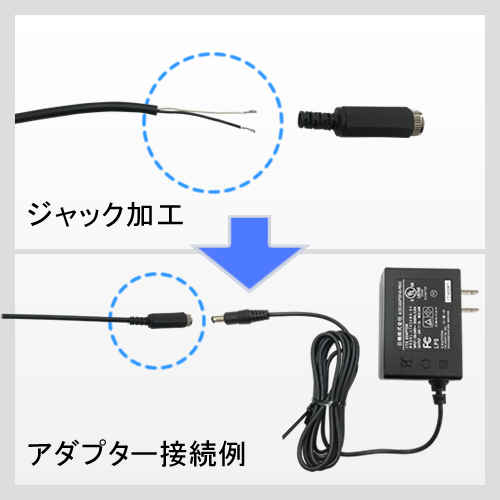

Wire joint processing
- Jack processing for wire connector connection
Series selection method
| model | size | LED | shape | power supply | Glass | lens | Optional |
|---|---|---|---|---|---|---|---|
| NLE |
|
|
|
|
|
|
|
