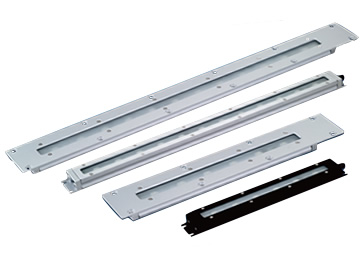

NLF flat series (waterproof LED lighting)
Feature
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the input voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design can protect the lamps from sudden power surges or instantaneous power outages.
It has high insulation properties and is most suitable for internal lighting of machine tools. Using LEDs that are highly trusted around the world.
The body is made of aluminum, with heat-treated glass on the front, making it sturdy and not easily damaged.
The slender design with a width of 41mm is most suitable for use in places with limited space.
Applicable
Internal lighting of machines and machine tools, industrial machinery lighting, equipment machinery lighting, etc.
In environments with heavy oil and gas, consider adding oil-resistant material-related accessories to extend the service life of the lamp.
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP67 |
| power supply | DC |
| Standard wiring | 3m（AWG26x2C） |
| Certification |   |
| Select accessories | Body color = silver oil resistant wire |
|---|---|
| The wire protective cover is suitable for standard type (single side corrugated pipe
connector) The wire protective cover is suitable for standard type (double-sided corrugated pipe connector) |
|
| Angle adjustment base (ND-P02) Fixed magnet (ND-P03) Switch control line (ND-SW01) |
|
| AC/DC power supply (ND-PM243) (Using temperature -10℃~40℃) refers to the situation without freezing |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker

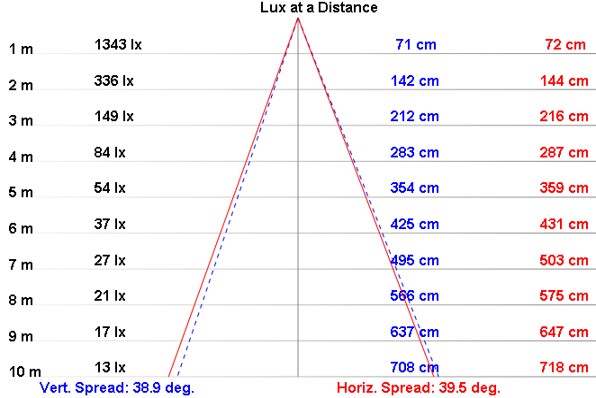

Light distribution curve data
NLF13C-DC
NLF26C-DC
Dimensional drawing

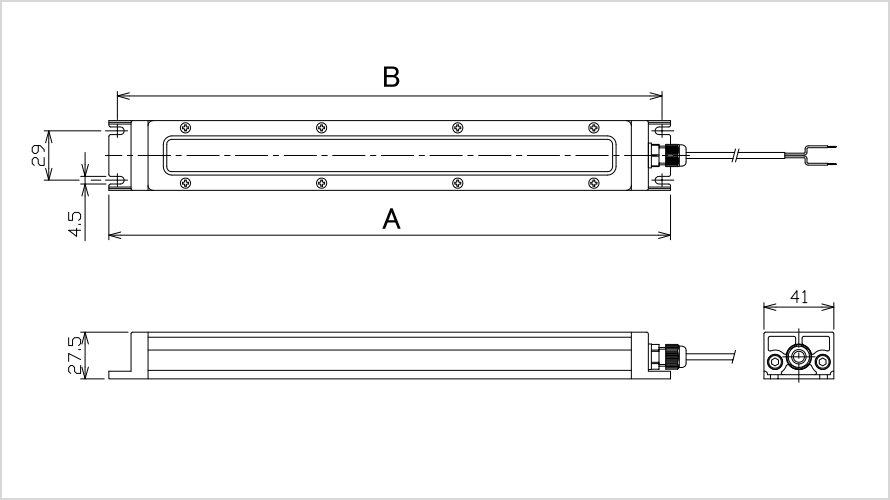

Standard type
| model | A | B |
|---|---|---|
| NLF13C / NLF13S | 330 | 320 |
| NLF26C / NLF26S | 590 | 580 |

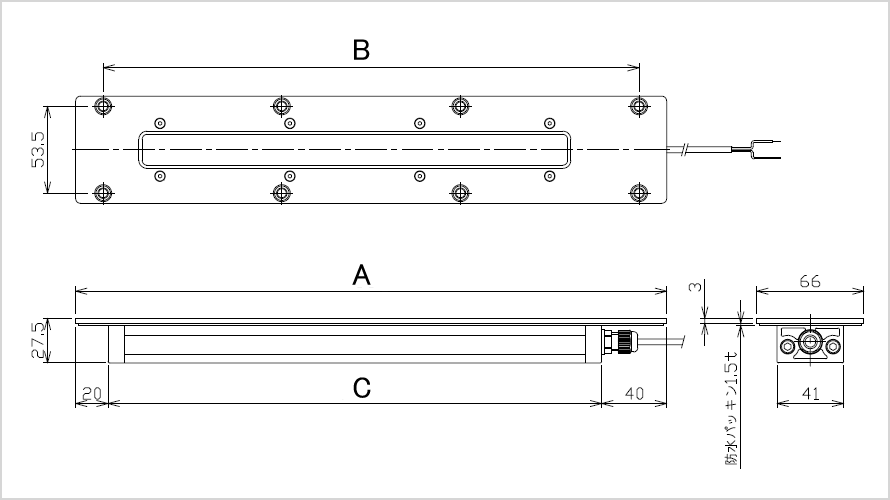

Embedded
| model | A | B | C |
|---|---|---|---|
| NLF13CF / NLF13SF | 364 | 330 | 304 |
| NLF26CF / NLF26SF | 624 | 600 | 564 |
Select accessories
-
AC/DC power supply
- Model: ND-PM243
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: maximum 24W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
switch control line
- Model: ND-SW01
- Wire length: 0.3m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
Series selection method
| model | size | LED | shape | power supply | Glass | lens | Optional |
|---|---|---|---|---|---|---|---|
| NLF |
|
|
|
|
|
|
|
