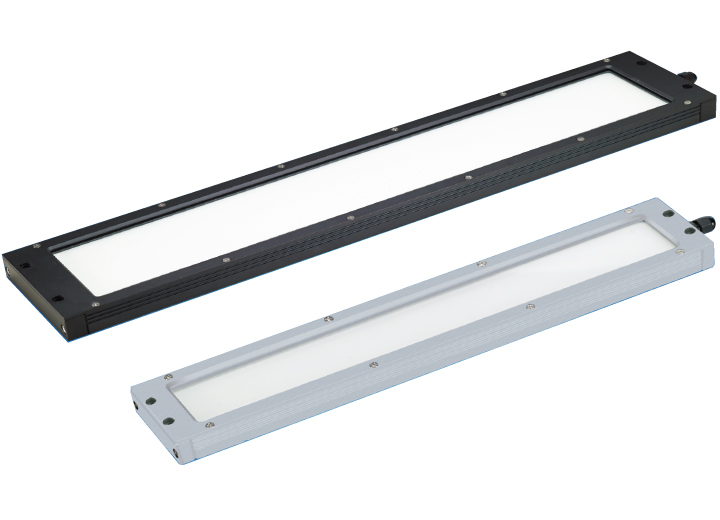

NLUP series (waterproof surface-emitting LED lighting)
Feature
LED has a unique non-glare surface emitting lighting and is waterproof. The lamp emits evenly and naturally, so your eyes will not feel tired even if it is used for a long time.
Since light reflection is minimal, it is most suitable for inspection lighting.
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages.
It has high insulation properties and is most suitable for internal lighting of machine tools. Using LEDs that are highly trusted around the world.
Applicable
Machine tool internal lighting, industrial machinery lighting, equipment machinery lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP67 |
| power supply | DC24V |
| Standard wiring | 3m （VCTF0.5mm2x2C） |
| Certification |   |
| Select accessories |
Body color: silver |
|---|
Comparative example

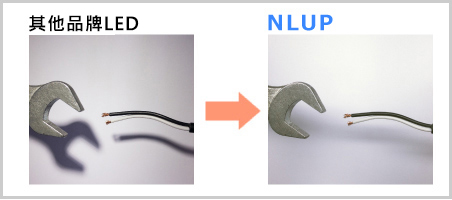

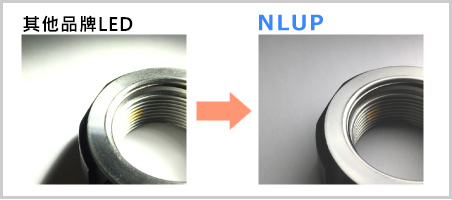

Shadows are produced with conventional LED (left) lighting, but NLUP (right) shadow rendering is barely visible
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Standard model list
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLUP05-DC | PDF DXF 3D STEP | 480 lm | 260 lx | DC24V | 5.8W |
| NLUP10-DC | PDF DXF 3D STEP | 800 lm | 410 lx | 12W | |
| NLUP20-DC | PDF DXF 3D STEP | 1,130 lm | 580 lx | 19W | |
| NLUP05T-DC | PDF DXF 3D STEP | 690 lm | 380 lx | 12W | |
| NLUP10T-DC | PDF DXF 3D STEP | 1,300 lm | 700 lx | 23W | |
| NLUP20T-DC | PDF DXF 3D STEP | 2,570 lm | 1,430 lx | 37W | |
| NLUP2-20-DC | PDF DXF 3D STEP | 2,570 lm | 1,350 lx | 37W |
※If the power supply is changed to AC100-240V, please select an AC/DC power supply.

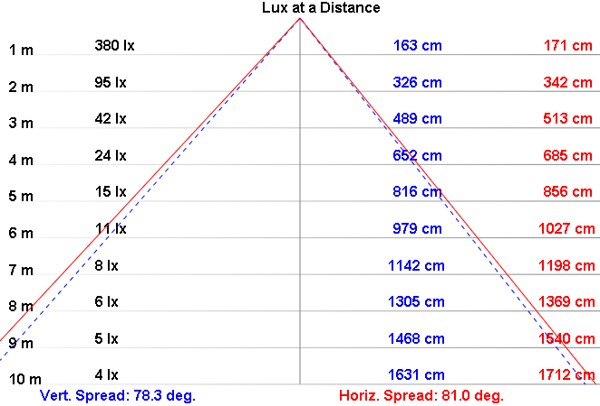

Light distribution curve data
NLUP05T-DC
NLUP10T-DC
NLUP20T-DC
NLUP2-20-DC

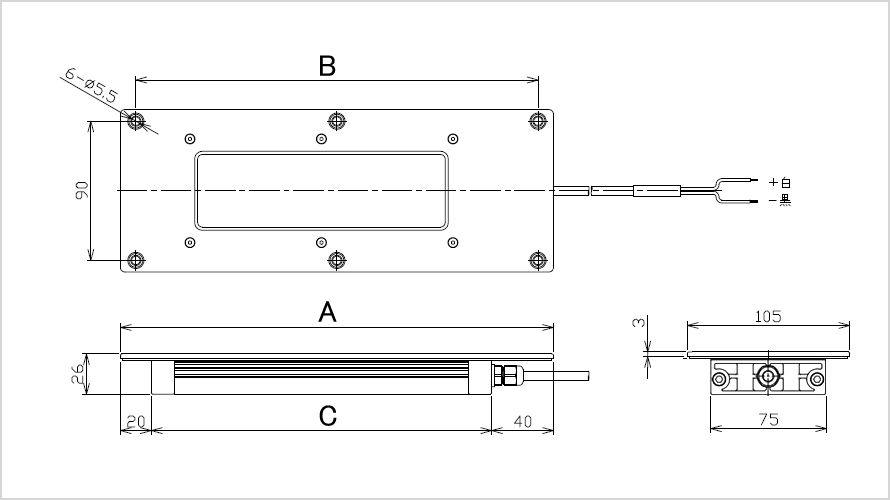

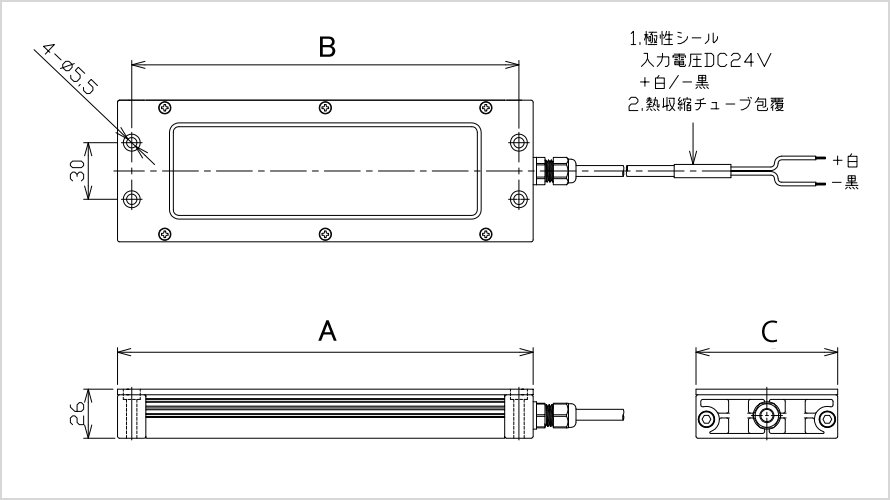

Dimensional drawing
Standard type
| model | A | B | C | D |
|---|---|---|---|---|
| NLUP05／NLUP05T | 220 | 205 | 75 | 30 |
| NLUP10／NLUP10T | 395 | 380 | 75 | 30 |
| NLUP20／NLUP20T | 540 | 525 | 75 | 30 |
| NLUP2-20 | 540 | 525 | 115 | 60 |
Embedded
| model | A | B | C |
|---|---|---|---|
| NLUP05F／NLUP50TF | 280 | 260 | 220 |
| NLUP10F／NLUP10TF | 455 | 432 | 395 |
| NLUP20F／NLUP20TF | 600 | 576 | 540 |
Optional accessories for NLUP flat work light
-
AC/DC power supply
- Model: ND-PM243
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: maximum 24W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
AC/DC power supply
- Model: ND-PM247
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: Max 60W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Wire protective cover
- Material: nylon
-
fixed magnet
- Model: ND-P06
- Overall dimensions: 41Lx28Wx8H
- Quantity: 2 pieces/group
- Screws M4x6L 4 pieces
- ※Drawing "download"
-
Angle adjustment base
- Model: ND-P01
- Quantity: 2 pieces/group
- Screw: M5*2
- Adjustment angle: ±45°
- ※Drawing "download"
-
switch control line
- Model: ND-SW01
- Wire length: 0.3m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Wire joint processing
- Jack processing for wire connector connection
Series selection method
| model | size | light source | Appearance | power supply | Optional |
|---|---|---|---|---|---|
| NLUP |
|
|
|
|
|
