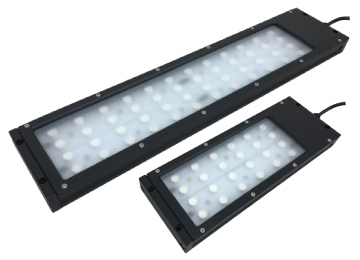

NLW flat-panel LED light (waterproof LED lighting)
Feature
The NLW series is specially developed for interior lighting of large machinery. Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects the lamp against inrush currents, surges or instantaneous power outages.
It also has high insulation properties and is most suitable for internal lighting of machine tools. Using LEDs with the highest reliability in the world
The body is made of aluminum, with heat-treated glass on the front, making the whole unit sturdy and not easily damaged.
Applicable
Machine tool internal lighting, industrial machinery lighting, equipment machinery lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| protection level | IP67 |
| power supply | DC |
| Standard wiring | 3m （VCTF0.5mm2x2C） |
| Certification |   |
| Select accessories | Body color: silver |
|---|---|
| Oil resistant wire 3m | |
| The wire protection cover is suitable for standard type (single/double side corrugated pipe connector) | |
| AC/DC power supply (ND-PM247) Switch control line (ND-SW01) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
Nikki product adopt an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the light source of a Nikki product.
[General LED] Flickers and streaks may be observed during photography
[Nikki product] Mild and even light, no flicker
Standard model list
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLW40C-DC | PDF DXF 3D STEP | 2,800 lm | 3,600 lx | DC24V | 28W |
| NLW80C-DC | PDF DXF 3D STEP | 5,400 lm | 6,700 lx | 56W | |
| NLW40C-DC-S | PDF DXF 3D STEP | 2,500 lm | 2,200 lx | 28W | |
| NLW80C-DC-S | PDF DXF 3D STEP | 4,500 lm | 3,200 lx | 56W |
※If the power supply is changed to AC100-240V, please select an AC/DC power supply.

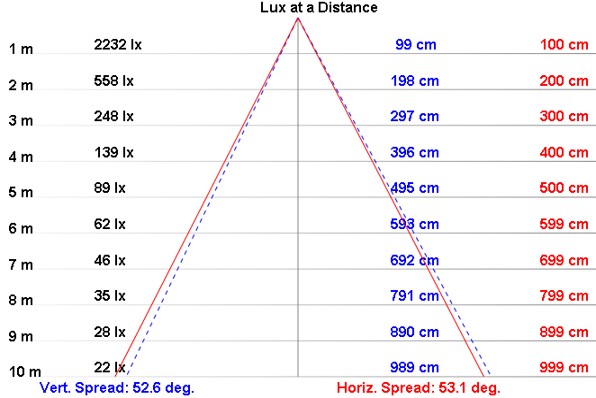

Light distribution curve data
NLW40C-DC-S
NLW80C-DC-S

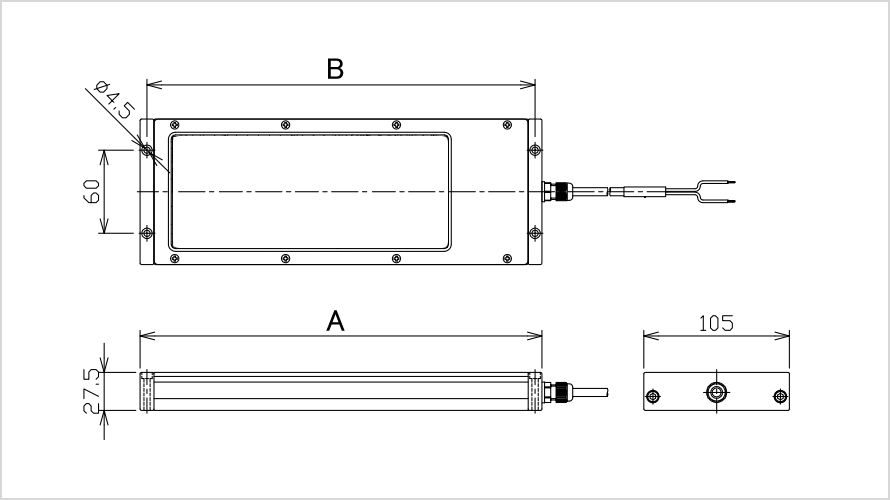

Dimensional drawing
Standard type
| model | A | B |
|---|---|---|
| NLW40C | 290 | 280 |
| NLW80C | 490 | 480 |
Select accessories
-
wall power supply
- Model: ND-PM247
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: Max 60W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
switch control line
- Model: ND-SW01
- Wire length: 0.3m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Wire protective cover
- Material: nylon
Series selection method
| model | size | power supply | Glass | Optional |
|---|---|---|---|---|
| NLW |
|
|
|
|
