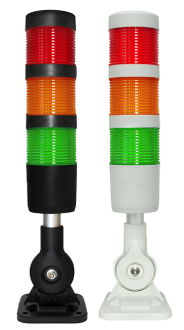

LED warning light
NLA50CJQ1 series
Feature
Using high-brightness LED, high-quality circuit design, low thermal resistance, low light attenuation, effectively extending the life of the lamp.
The lampshade has a large light-emitting angle and a 360° all-round warning light-emitting surface, so you can clearly identify the machine status no matter which direction you are in.
90db high decibel buzzer, the sound is loud and can be heard even from a distance.
Applicable
Semiconductor industry, five-axis machine tools, boat parking, automation control, driveway entrances and exits, parking lots.
Specification
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
|---|---|
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| protection level | IP50 |
| Body material | PC |
| Wiring method | PNP/NPN shared |
| Standard wiring | 530 mm（AWG24） |
| certification |
|
Standard model list
| model | power supply | Light color | Body color | consume electricity |
|---|---|---|---|---|
| NLA50CJQ1 | DC24V | R (red) Y (yellow) G (green) ※Three layers fixed |
W (white)/K (black) | 2W |
Dimensional drawing
Body size (adjustable angle)
