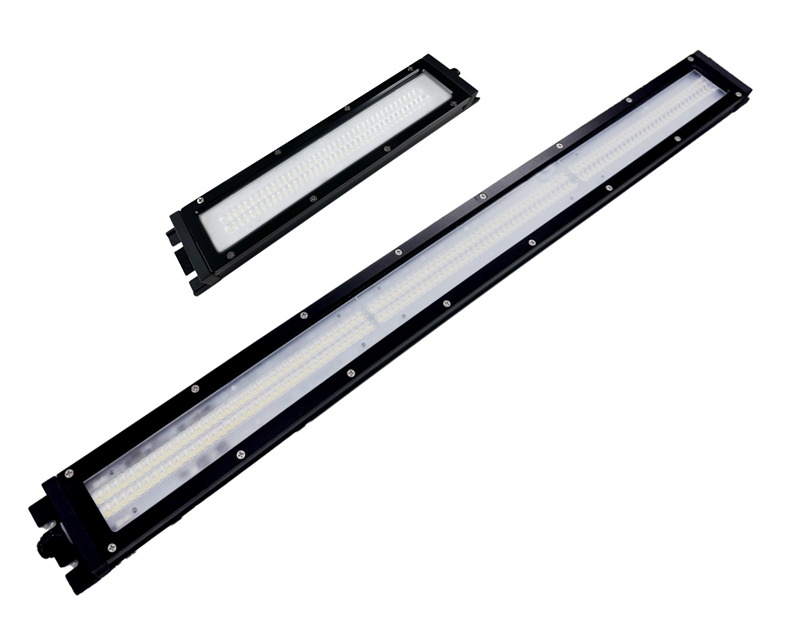

NLE-SN3 series (uniform light type)
Feature
The body is made of aluminum, with heat-treated glass on the front. The overall design is sturdy and not easily damaged.
Through the independently developed total reflection lens, the light collection ability is effectively improved, and the 37-degree light distribution angle greatly increases the vertical illumination.
The lamps will not produce overlapping images and flicker will be suppressed to less than 2%.
The power supply adopts a constant current loop design, which effectively extends the service life of the LED, and is equipped with various protection loops, making it safe to use.
Applicable
Machine tool internal lighting, industrial machinery lighting, equipment machinery lighting, etc.
Video introduction
Specification
| color temperature | 5,700K |
|---|---|
| Body color | black |
| life expectancy | Ambient temperature 40℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP67 |
| power supply | DC |
| Standard wiring | 3m （VCTF0.5mm2x2C） |
| Certification |
|
| Select accessories | Body color: silver |
|---|---|
| oil resistant wire Fluorine oil seal |
|
| The wire protective cover is suitable for standard type (single side corrugated pipe
connector) The wire protective cover is suitable for standard type (double-sided corrugated pipe connector) |
|
| Angle adjustment base (ND-P01) Fixed magnet (ND-P04) AC/DC power supply (ND-PM243) (24W) AC/DC power supply (ND-PM247) (60W) Switch control line (ND-SW01) |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
The NLE-SN3 series adopts an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under NLE-SN3 series light source.
[General LED] Flickers and streaks may be observed during photography
[NLE-SN3 Series] Mild and even light, no flicker
Comparison between traditional LED lamps and NLE13SN3 light source

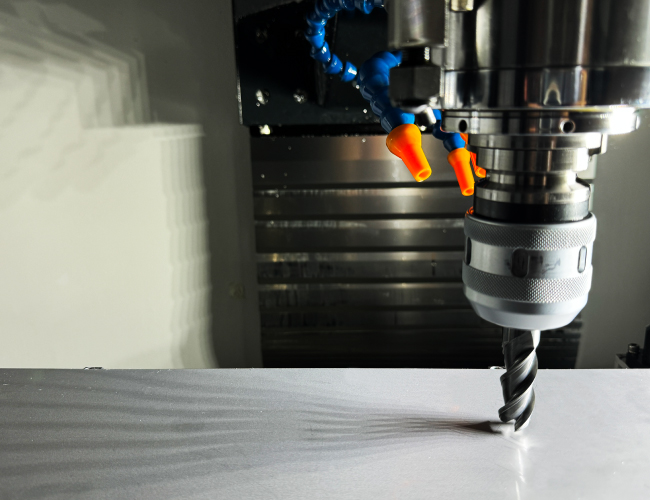

Left: Traditional LED
Traditional LEDs
easily cause fatigue to the user's eyes due to glare and multi-layered shadows.
Right: NLE13SN3-DC
The NLE SN3 series will not cause multi-layer overlapping images, and
will not cause eye fatigue to users when used for a long time.

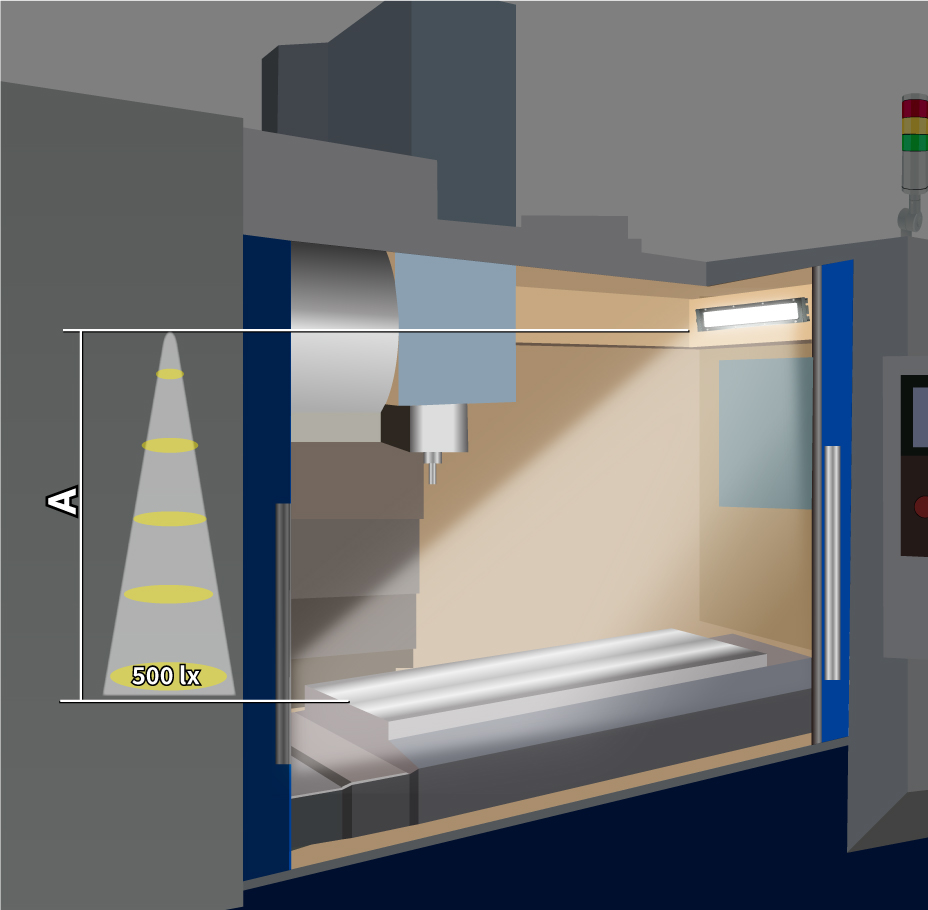

NLE-SN3 series measures illumination
Measure the distance directly below the lamp where the illumination is 500lx (A)
| model | A |
|---|---|
| NLE13SN3-DC | 1.9m |
| NLE26SN3-DC | 2.51m |
| NLE36SN3-DC | 3.74m |
※According to JIS Z9110:2010 specifications, the illumination of the work surface in the workplace needs to be 500lx to meet the standards of working environment lighting.
Light distribution curve data

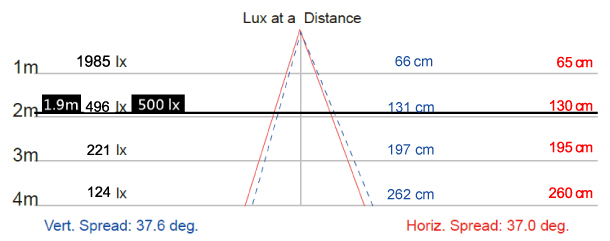

NLE13SN3-DC

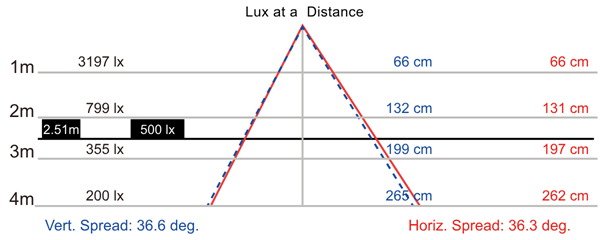

NLE26SN3-DC

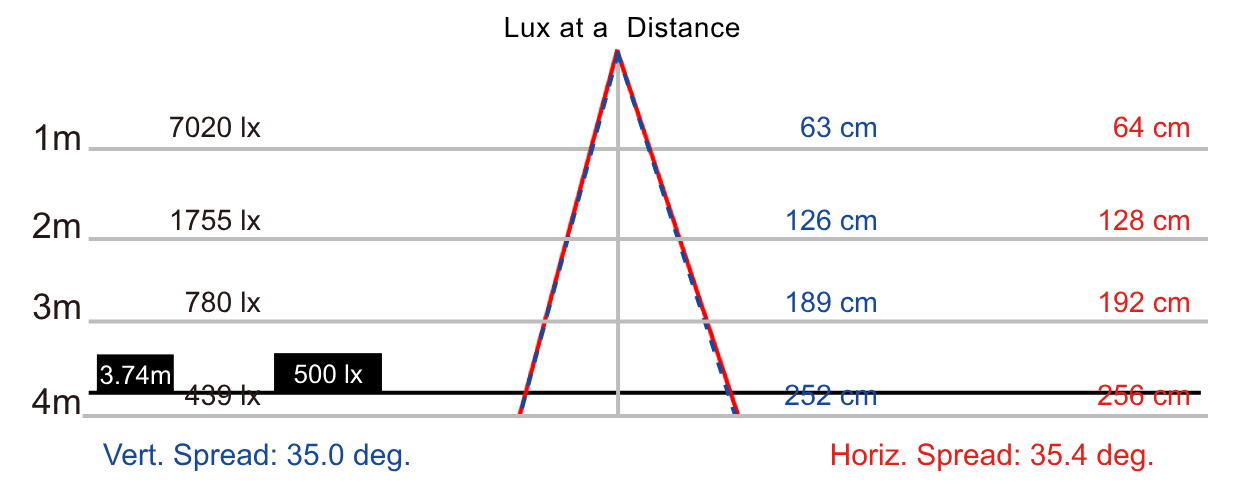

NLE36SN3-DC
Dimensional drawing

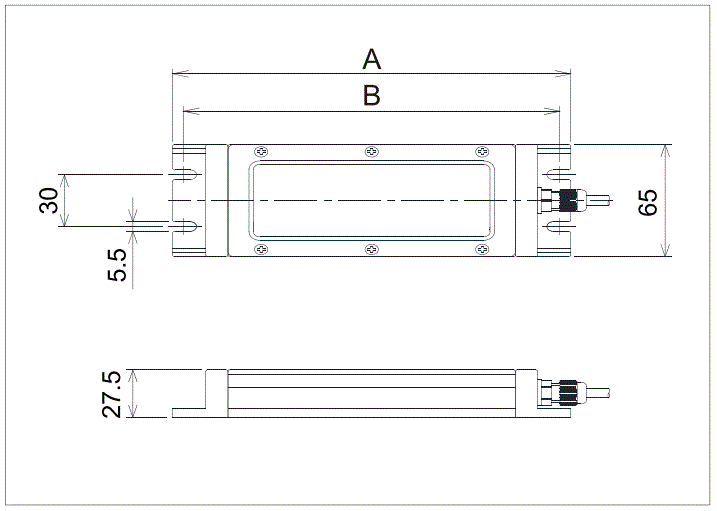

Standard type
| model | A | B |
|---|---|---|
| NLE13SN3 | 330 | 320 |
| NLE26SN3 | 530 | 520 |
| NLE36SN3 | 730 | 720 |

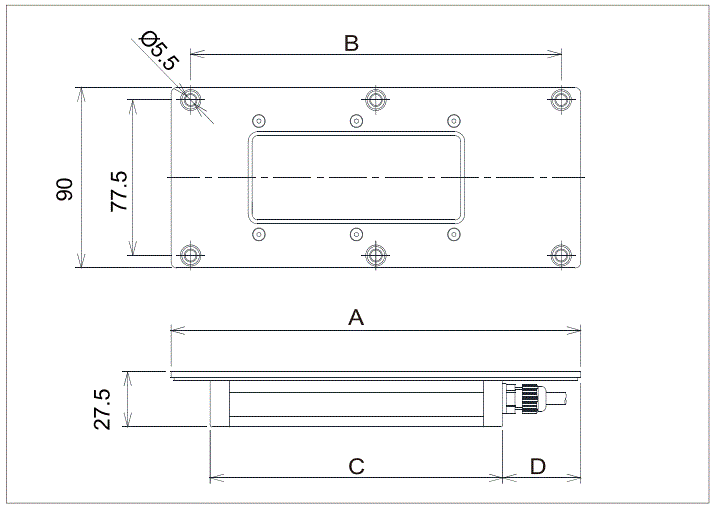

Embedded
| model | A | B | C | D |
|---|---|---|---|---|
| NLE13SNF3 | 360 | 340 | 300 | 40 |
| NLE26SNF3 | 560 | 540 | 500 | 35 |
Select accessories
-
AC/DC power supply
- Model: ND-PM243
- Certification: PSE FCC
- Input voltage: AC100～240V
- Output voltage: DC24V
- Output power: maximum 24W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
AC/DC power supply
- Model: ND-PM247
- Certification: PSE FCC
- Input voltage: AC100-240V
- Output voltage: DC24V
- Output power: Max 60W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Wire protective cover
- Material: nylon
-
fixed magnet
- Model: ND-P04
- Overall dimensions: 41Lx28Wx8H
- Quantity: 2 pieces/group
- Screws M4x6L 4 pieces
- ※Drawing "download"
-
Angle adjustment base
- Model: ND-P01
- Quantity: 2 pieces/group
- Installation screw size: M5*2
- Adjustment angle: ±45°
- ※Drawing "download"
-
switch control line
- Model: ND-SW01
- Wire length: 0.3m
- Applicable voltage: 5V-24V
- Allowable current: 3A
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "download"
-
Wire joint processing
- Jack processing for wire connector connection
Series selection method
| model | size | series | shape | power supply | Optional |
|---|---|---|---|---|---|
| NLE |
|
SN3 |
|
|
|
