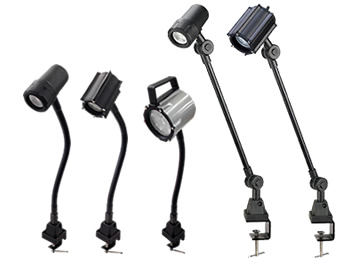

BT Series - Spotlight
Feature
The C-shaped base work light can be easily clipped onto desktops and work platforms for use.
The standard equipment is a cord with plug and AC adapter, which makes it easy to move and has a wide range of uses in work.
Applicable
Visual inspection, inspection lighting, simple work auxiliary lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| Maximum clamping thickness | 40 mm |
| Standard wiring | AC/DC power supply |
| certification |
 (power supply)
|
| Choose and match | Color temperature=4000K |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
The BT series adopts an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the BT series light source.
[General LED] Flickers and streaks may be observed during photography
[BT Series] Mild and even light, no flicker
5700K (standard) and 4000K (optional) color temperature comparison table
Depending on the working environment and the content of the exposure, choose between 5700K and 4000K color temperatures.

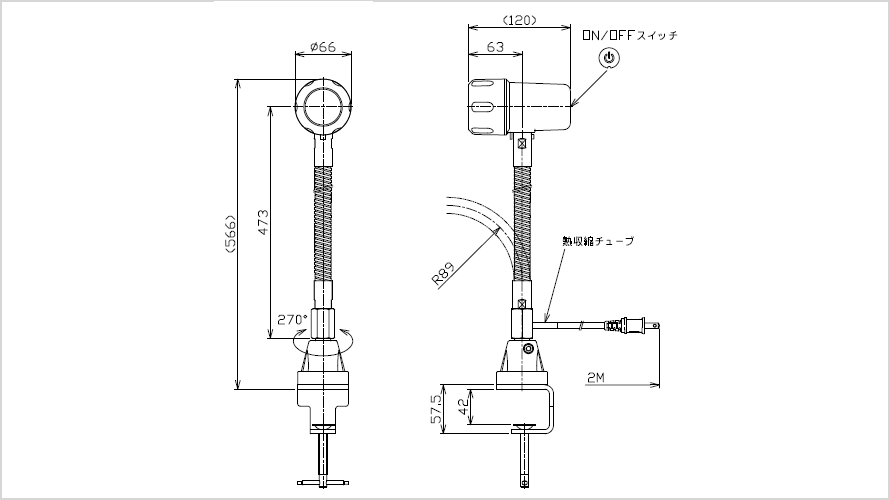

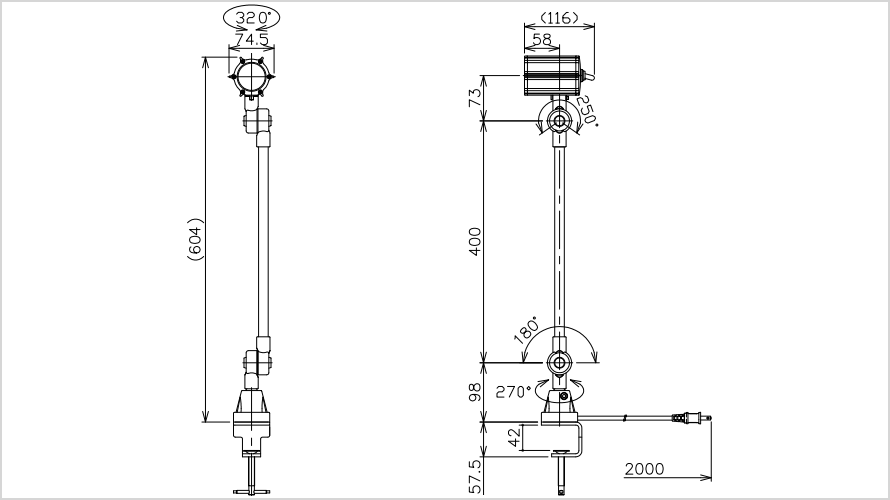

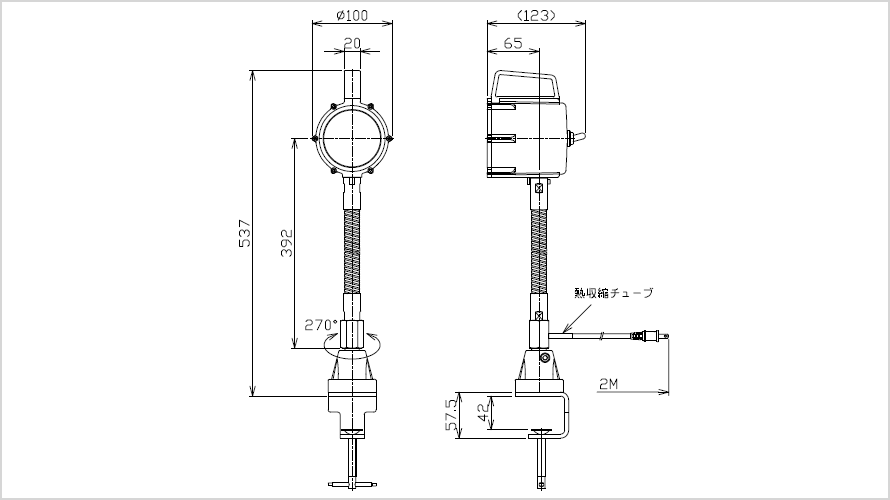

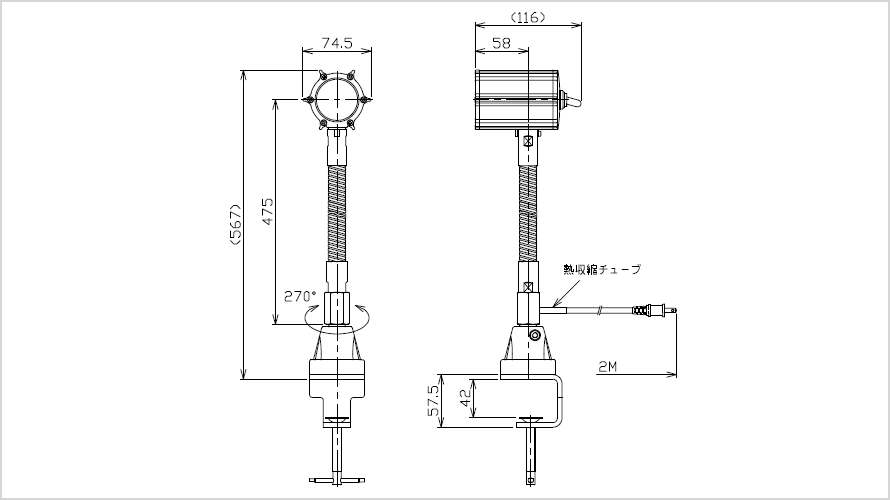

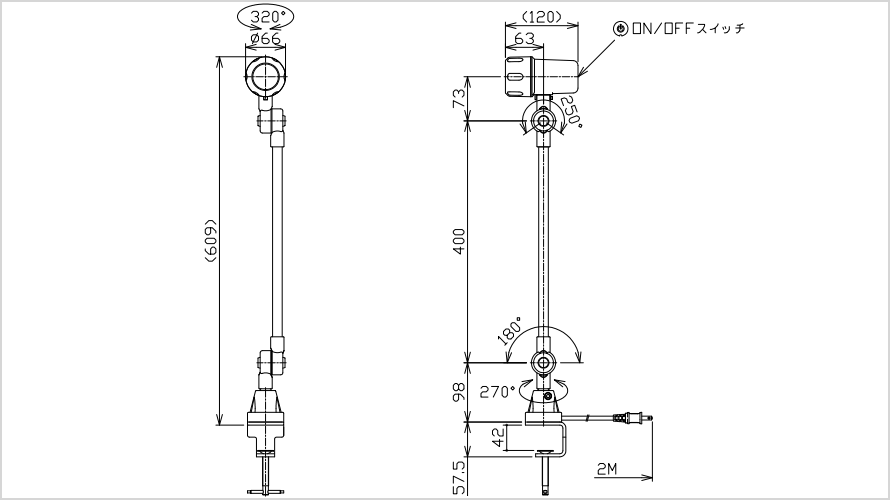

Dimensional drawing
NLSS03CBT-AC
NLSS05CBT-AC
NLSS03CBT4-AC
NLSS05CBT4-AC
NLSS15CBT3-AC
BT Series - Surface Luminous
Feature
The C-shaped clip-on base work light can be easily clipped onto a desktop or work platform for use.
Surface-emitting LED lighting with dimming function; touch-sensitive dimming design with no stage dimming in the range of 20% to 100%.
When the power is turned on again, the brightness storage function can reproduce the brightness when the power is turned off and on again. (Lighting storage records will be reset if the electrical outlet is unplugged.)
LED's unique non-glare surface emitting lighting emits evenly and naturally, so your eyes will not feel tired even if used for a long time.
Since light does not easily reflect, you can easily see what you want to see; ideal for inspection lighting.
Dimming function
Dimmer switch (left): It can be dimmed from 20% brightness to 100% brightness, with
cyclic adjustment.
Power switch (right): Turns ON/OFF with just a light touch.
Applicable
Visual inspection lighting, simple task lighting, image inspection lighting, display display lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 40℃ 40,000 hours (25℃ 60,000 hours) ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| Clamping thickness | 40 mm |
| Standard wiring | AC/DC power supply (AC100 - 240V power supply) |
| certification |
 (power supply)
|
| Color rendering | Ra80 |
Comparison example between other brand LED lamps and Nikki NLUD-BT
▲Other brands of LED lights tend to produce shadows
▲NLUD is not easy to produce shadows
Standard model list
| model | drawing | Luminous flux | Illuminance (1 meter) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLUD05BT-AC | PDF DXF | 540 lm | 280 lx | AC100 - 240V | 7W |
| NLUD05BT4-AC | PDF DXF | 540 lm | 280 lx | 7W | |
| NLUD10BT-AC | PDF DXF | 1,050 lm | 530 lx | 14W | |
| NLUD10BT4-AC | PDF DXF | 1,050 lm | 530 lx | 14W | |
| NLUD20BT-AC | PDF DXF | 1,600 lm | 800 lx | 21W | |
| NLUD120-15BT-AC | PDF DXF | 1,130 lm | 570 lx | 14W | |
| NLUD120-25BT-AC | PDF DXF | 2,080 lm | 1,030 lx | 27W |
Dimensional drawing

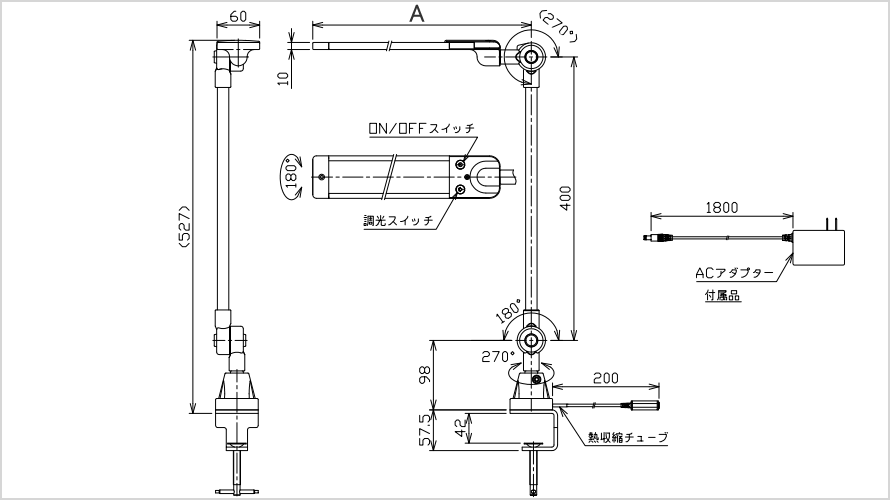

NLUD05 / 10 BT-AC
| Model/size (mm) | A |
|---|---|
| NLUD05BT | 308 |
| NLUD10BT | 483 |

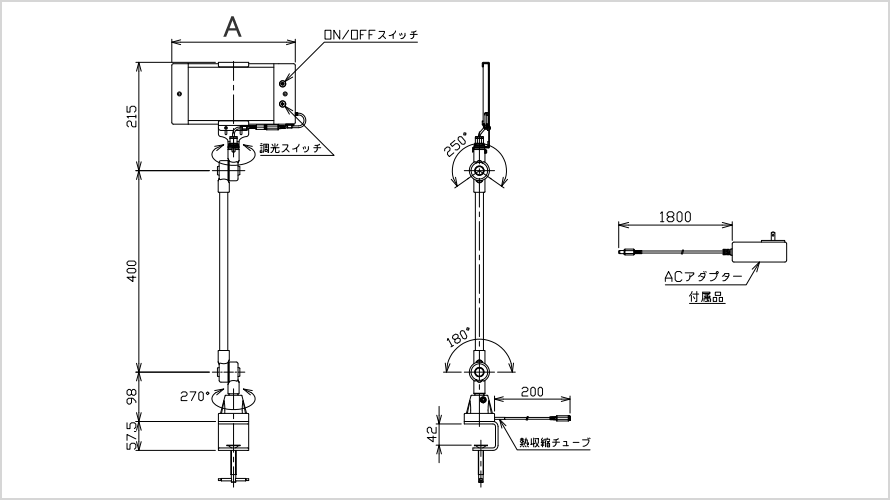

NLUD120-15 / 120-25 BT-AC
| Model/size (mm) | A |
|---|---|
| NLUD120-15BT | 245 |
| NLUD120-25BT | 420 |

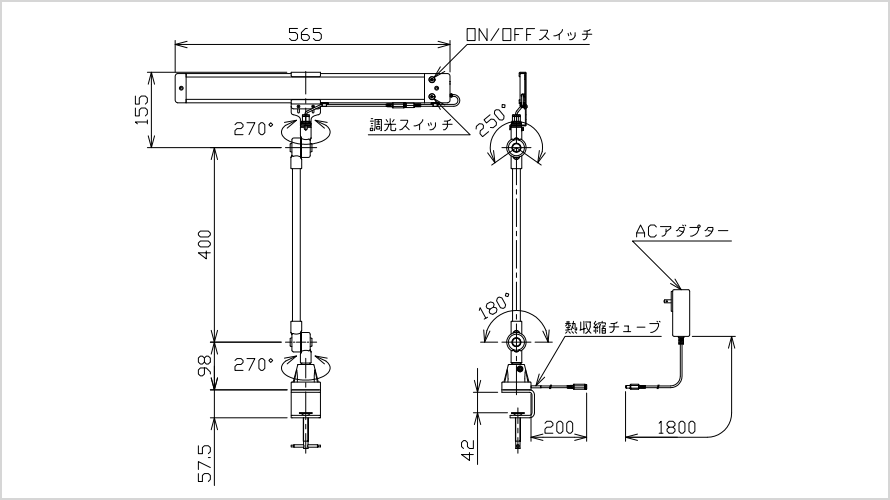

NLUD20BT-AC

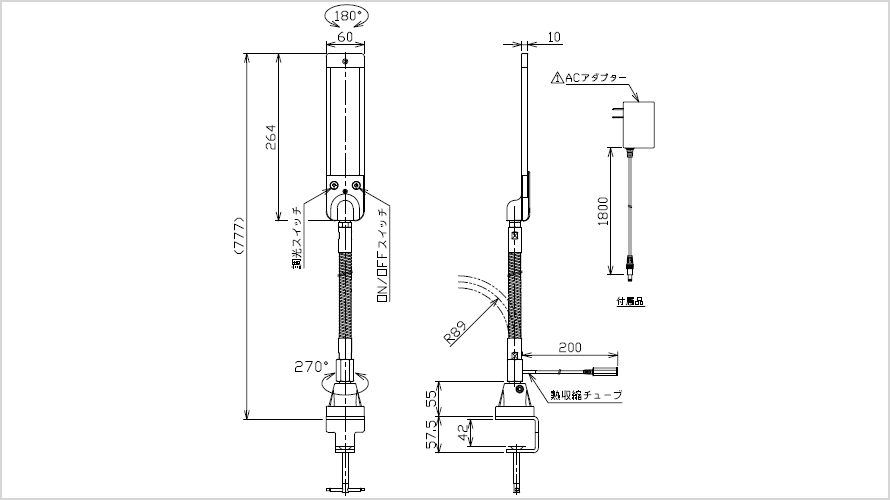

NLUD05BT4-AC

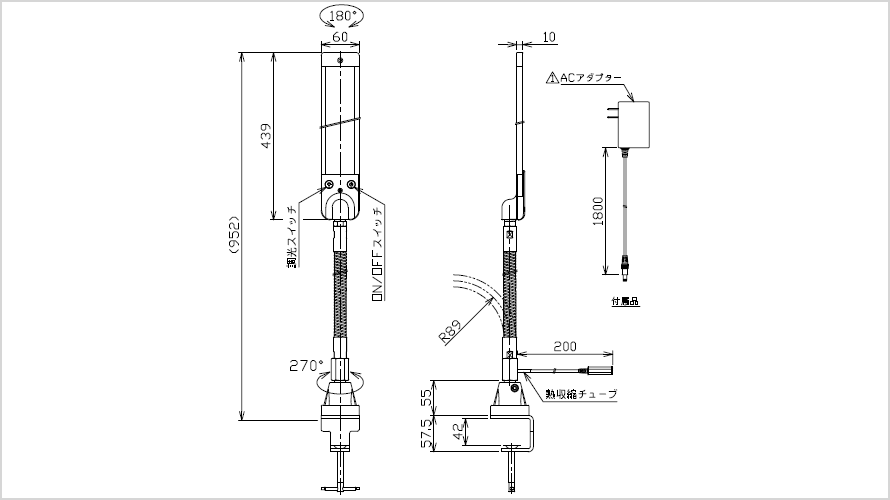

NLUD10BT4-AC
