Dimmable Surface Emitting LED Lighting

(NLUD series)

Product Lineup

NLUD series

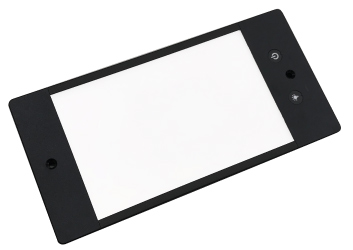

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection product image

Features

Surface-emitting LED lighting with dimming function, touch-controlled dimming design with no stage dimming in the range of 20% to 100%.

With a brightness storage function, the brightness can be reproduced when the power is turned off and on again. (If the electrical outlet is unplugged, the lighting brightness storage record will be reset.)

LED's unique non-glare surface emitting lighting emits evenly and naturally, so your eyes will not feel tired even if used for a long time.

The low-reflection surface-emitting design improves visibility and is ideal for inspection lighting.

Dimming Function

Dimming Function NLU

Dimmer switch (left): It can be dimmed from 20% brightness to 100% brightness, with cyclic adjustment.
Power switch (right): Turns ON/OFF with just a light touch.

Applications

Inspection Lighting, Simple Task Lighting, and Display Lighting.

Specifications

Color Temperature 5,700K
Service Life Ambient temperature 25℃ 60,000 hours
※Life span is based on initial illumination reduced to 70%
Operating Temperature -10℃～40℃ (when not freezing)
Protection Rating IP50
Performance Ra80
Standard Wiring DC = 3m(AWG26x2C)
AC = 2.3m (with Wall-Plug AC/DC Adapter)
Certification CE certification mark FCC certification mark
Optional Selection Color Rendering Index: Ra95

Buy NLUD Surface-Emitting LED Light Download Manual

Comparative example of LED lights from other brands and NIKKI NLUD

The status of other brands of LEDs

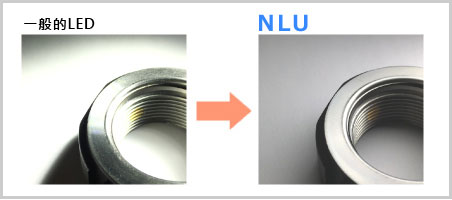

▲Other brands of LED lights tend to produce shadows

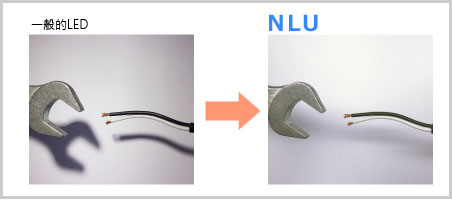

Comparison of other brands of LEDs
▲NLUD is reduces shadows

Low-Flicker LED Illumination

IEEE 1789 (Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers) recommends a flicker percentage of 8% or less. At around 3%, flicker is barely perceptible to the human eye.

NIKKI LED lights feature an exclusive low-flicker design that reduces the flicker percentage to less than 2%. This minimizes flicker not only during standard still-image and video recording, but also when capturing high-speed video at frame rates such as 240 fps. As a result, these lights are ideal for precision imaging applications, including machine vision, image inspection, and visual inspection.

※The image below shows illumination provided by a NIKKI LED light.

Comparison between NIKKI lighting and general LED 1 [General LED] Flickers and streaks may be observed during photography
Comparison between NIKKI lighting and general LED 2 [NLUD Series] Mild and even light, no flicker

Standard Model List (DC)

Model Drawing Luminous Flux Illuminance (1m) Power Supply Power Consumption Installation Base
NLUD05-DC PDF  DXF  3D STEP 540 lm 280 lx DC24V 5W Pan head screw hole M4X2
Powerful magnets (2 pcs on the back)
NLUD10-DC PDF  DXF  3D STEP 1,050 lm 530 lx 12W
NLUD20-DC PDF  DXF  3D STEP 1,600 lm 800 lx 19W
NLUD30-DC PDF  DXF  3D STEP 2,000 lm 1,030 lx 21.5W
NLUD120-15-DC PDF  DXF  3D STEP 1,130 lm 570 lx 12W Pan head screw hole M4X2
Powerful magnets (4 pcs on the back)
NLUD120-25-DC PDF  DXF  3D STEP 2,080 lm 1,030 lx 23W
NLUD120-35-DC PDF  DXF  3D STEP 3,200 lm 1,600 lx 38W
NLUD120-45-DC PDF  DXF  3D STEP 4,000 lm 2,000 lx 43W

Light Distribution Data

NLUD05

NLUD05 light distribution curve
Picture view

NLUD10

NLUD10 light distribution curve
Picture view

NLUD20

NLUD20 light distribution curve
Picture view

NLUD30

NLUD30 light distribution curve
Picture view

NLUD120-15

NLUD120-15 light distribution curve
Picture view

NLUD120-25

NLUD120-25 light distribution curve
Picture view

NLUD120-35

NLUD120-35 light distribution curve
Picture view

NLUD120-45

NLUD120-45 light distribution curve
Picture view

Dimensions (DC)

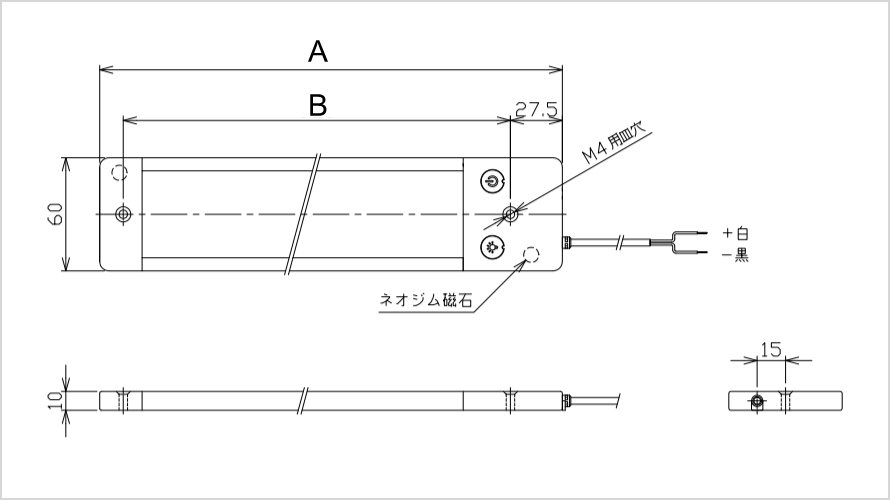

NLUD05／10／20／30 - DC

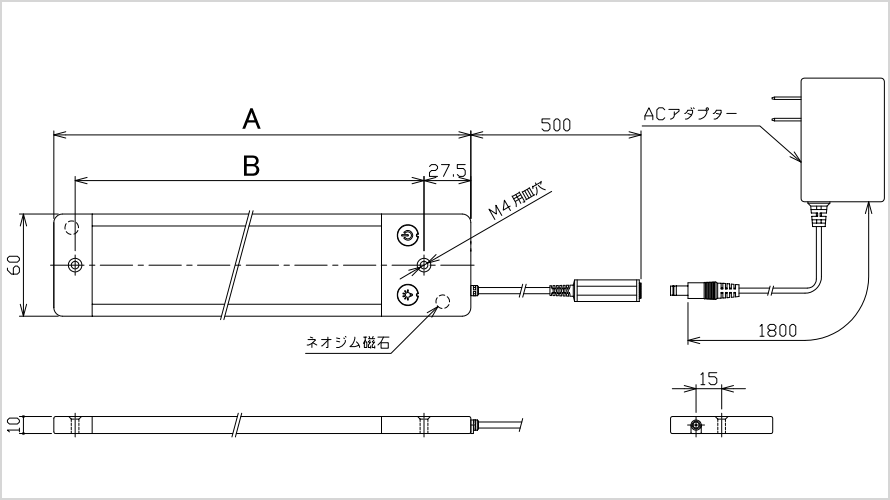

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection dimensions

Model/Size (mm) A B
NLUD05 245 205
NLUD10 420 380
NLUD20 565 525
NLUD30 730 690

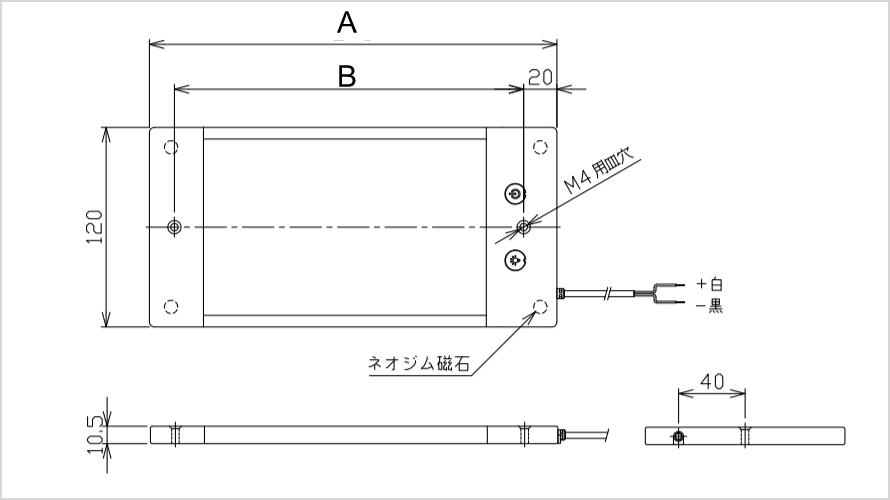

NLUD120-15／25／35／45 - DC

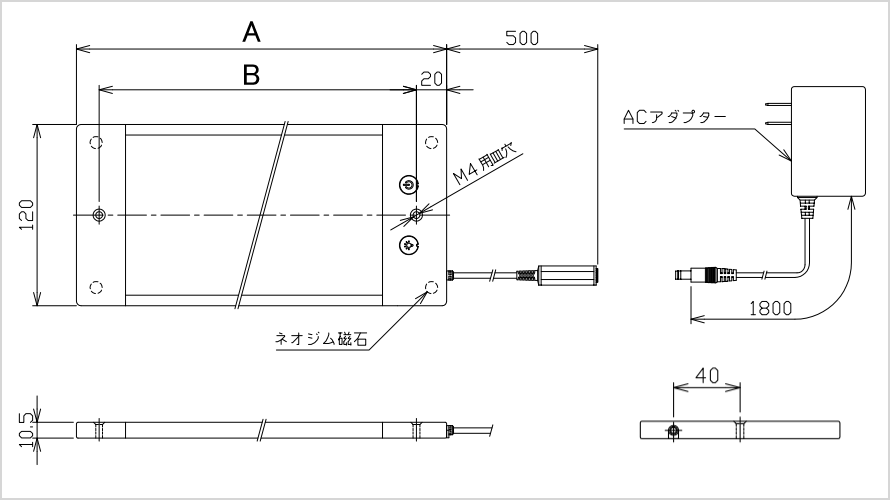

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection dimensions

Model/Size (mm) A B
NLUD120-15 245 210
NLUD120-25 420 385
NLUD120-35 565 530
NLUD120-45 730 695

Standard Model List (AC)

Model Drawing Luminous Flux Illuminance (1m) Power Supply Power Consumption Installation Base
NLUD05-AC PDF DXF 540 lm 280 lx AC100-240V 6W Pan head screw hole M4X2
Powerful magnets (2 pcs on the back)
NLUD10-AC PDF DXF 1,050 lm 530 lx 14W
NLUD20-AC PDF DXF 1,680 lm 800 lx 21W
NLUD30-AC PDF DXF 1,900 lm 1,030 lx 23.5W
NLUD120-15-AC PDF DXF 1,130 lm 570 lx 14W Pan head screw hole M4X2
Powerful magnets (4 pcs on the back)
NLUD120-25-AC PDF  DXF 2,080 lm 1,030 lx 27W
NLUD120-35-AC PDF  DXF 3,200 lm 1,500 lx 40W
NLUD120-45-AC PDF  DXF 4,000 lm 2,000 lx 45W

Dimensions (AC)

NLUD05 / 10 / 20 / 30 - AC

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection dimensions

Model/Size (mm) A B
NLUD05 245 205
NLUD10 420 380
NLUD20 565 525
NLUD30 730 690

NLUD120-15／25 - AC

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection dimensions

Model/Size (mm) A B
NLUD120-15 245 210
NLUD120-25 420 385

NLUD120-35／45 - AC

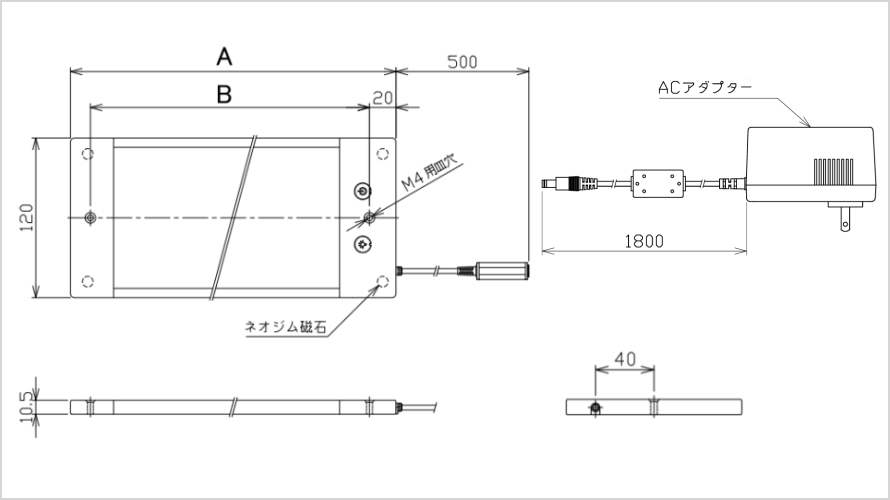

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection dimensions

Model/Size (mm) A B
NLUD120-35 565 530
NLUD120-45 730 695

What is Color rendering (Ra)

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection application example

Color Rendering Index is an indicator used to express the degree to which a light source reproduces the Color of an illuminated object.

The higher the Color rendering, the more natural colors can be displayed as seen in sunlight.

If the Color seen under the light source is exactly the same as that under natural light, the Color rendering property is 100. The lower the value, the greater the Color difference from that under natural light.

Light sources with high Color rendering properties are suitable for applications such as painting or finished product inspection that require Color confirmation.

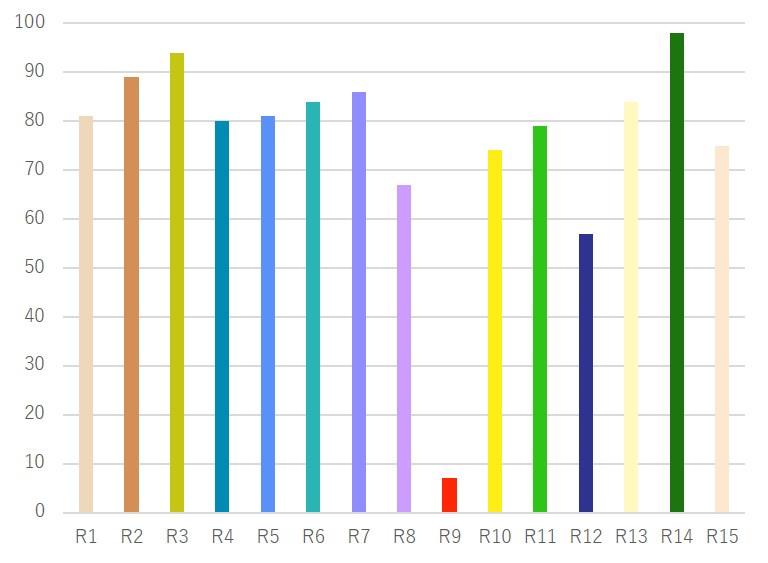

Special Color rendering index R1～R15

Average Color rendering index (Ra)

The numerical value obtained by averaging the Color rendering evaluation numbers of the eight test colors (No.1 to No.8).

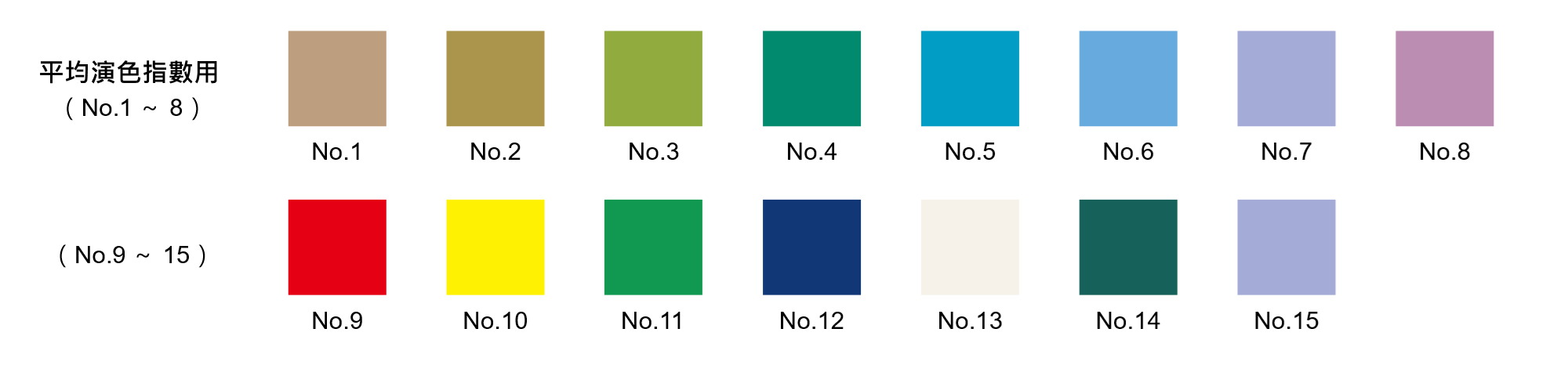

Special Color rendering index (Ri)

In addition to the average color rendering index Ra, this evaluation also checks key colors such as red (No. 9), yellow (No. 10), green (No. 11), blue (No. 12), Western skin tone (No. 13), leaf green (No. 14), and Japanese skin tone (No. 15).

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection illustration

Comparison with standard Model (Ra80 5700K)

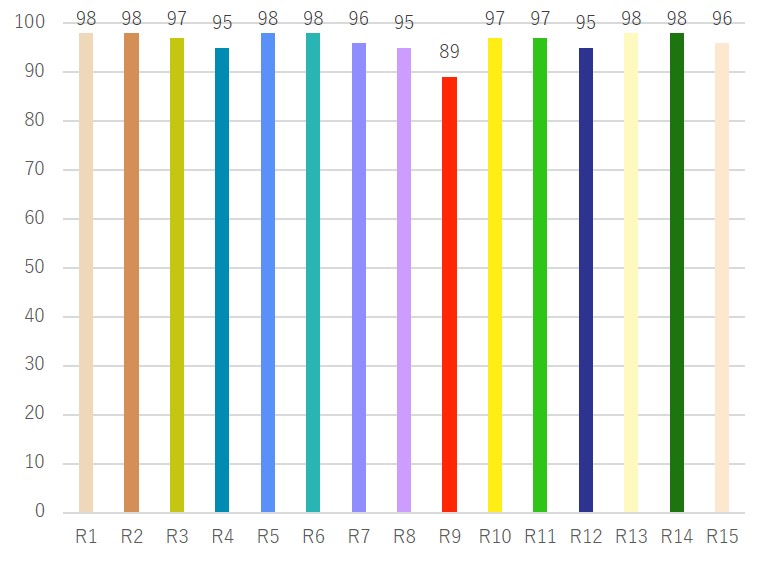

Compared with standard Models, the average Color rendering index of the Ra95 5000K specification is 97.3, enabling accurate Color recognition even in environments that require a high degree of Color reproduction.

NLUD20-AC(Ra80 5700K)

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection illustration

The number of colors presented is small, and the differences between various colors are obvious.

NLUD20-AC(Ra95 5000K)

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection illustration

The colors are rich, with minimal Color variation.

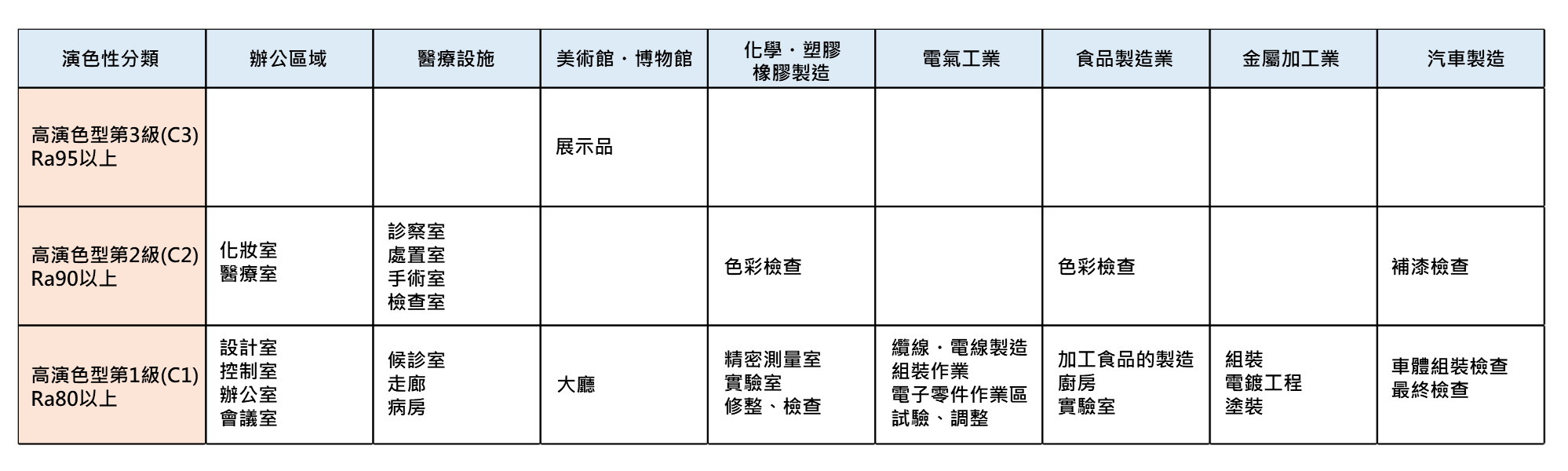

Color Rendering Index classification (excerpted from JIS Z 9125:2023 indoor illuminance standards)

NLUD Dimmable Surface Emitting LED Lighting for Visual Inspection illustration

Model Number Selection Guide

Model Size Power Supply Optional
NLUD
  • 05
  • 10
  • 20
  • 30
  • 120-15
  • 120-25
  • 120-35
  • 120-45
  • DC
    =DC24V
  • AC
    =AC100V - 240V (Wall-Plug AC/DC Adapter)
  • Color Rendering Index
    =Ra95 (※See remarks)

※Color Rendering Index = Ra95, this specification requires a minimum order quantity, please contact sales for details.
