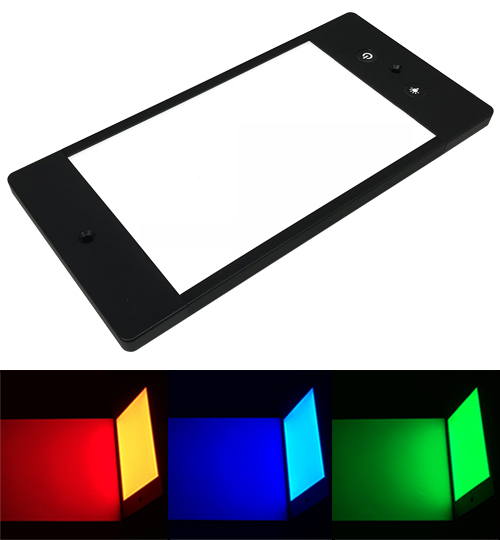

NLUD-RGB series
Feature
Inspection lighting for production line visual inspection and image processing inspection. The color of the LED light can be selected from red, green, and blue depending on the application.
The stable IC circuit maintains constant illumination even when voltage fluctuates, thereby extending the life of the LED.
Using a constant current IC loop drive method, the brightness of the lamp can be kept constant even if the voltage changes, and the life of the LED can be increased.
The independently developed protection circuit design protects against inrush currents, surges, or instantaneous power outages. Using LEDs that are highly trusted around the world.
Dimming function
Dimmer switch (left): It can be dimmed from 20% brightness to 100% brightness, with
cyclic adjustment.
Power switch (right): Turns ON/OFF with just a light touch.
Applicable
Production line appearance inspection, image processing inspection.
Specification
| Body color | black |
|---|---|
| life expectancy | Use temperature 25℃ 40,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| protection level | IP50 |
| Dimming function | Stepless dimming method (20% to 100%) |
| Standard wiring |
DC = 3m（AWG26x2C） AC = 2.3m (with AC/DC power supply) |
Check lighting

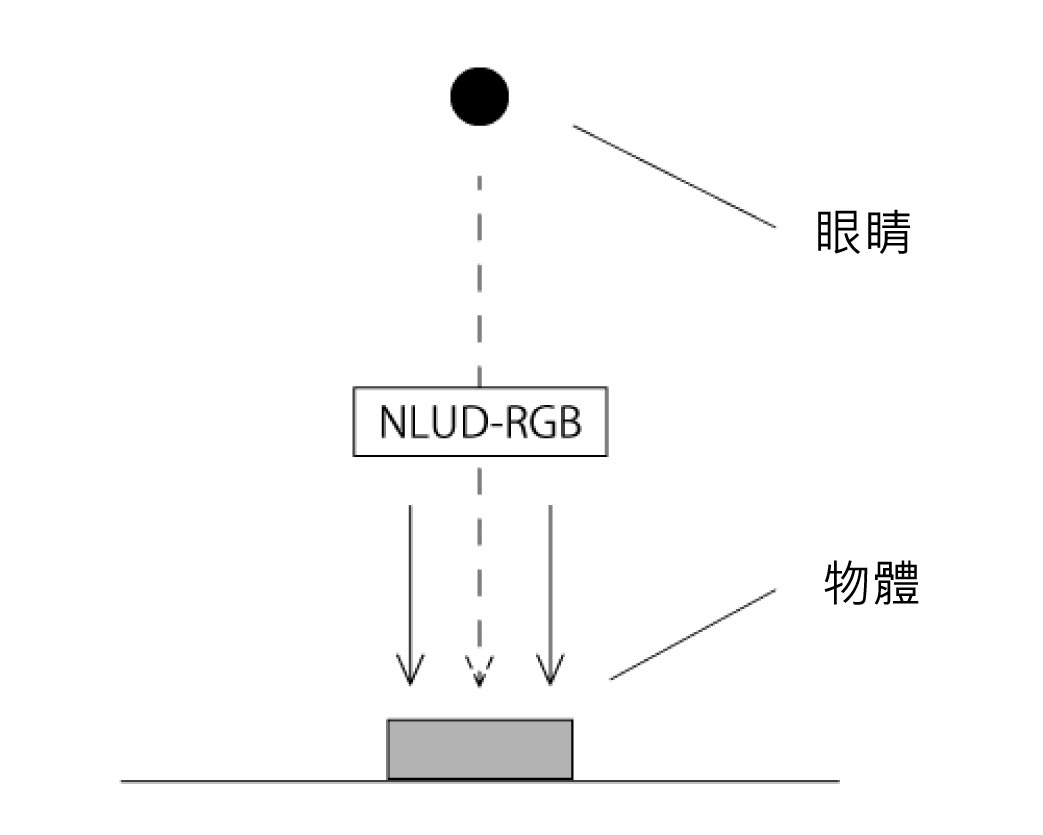

Visual inspection
A light ray from above or diagonally above examines the object. Scratches that are difficult to see with white light will appear white when illuminated with colored light.

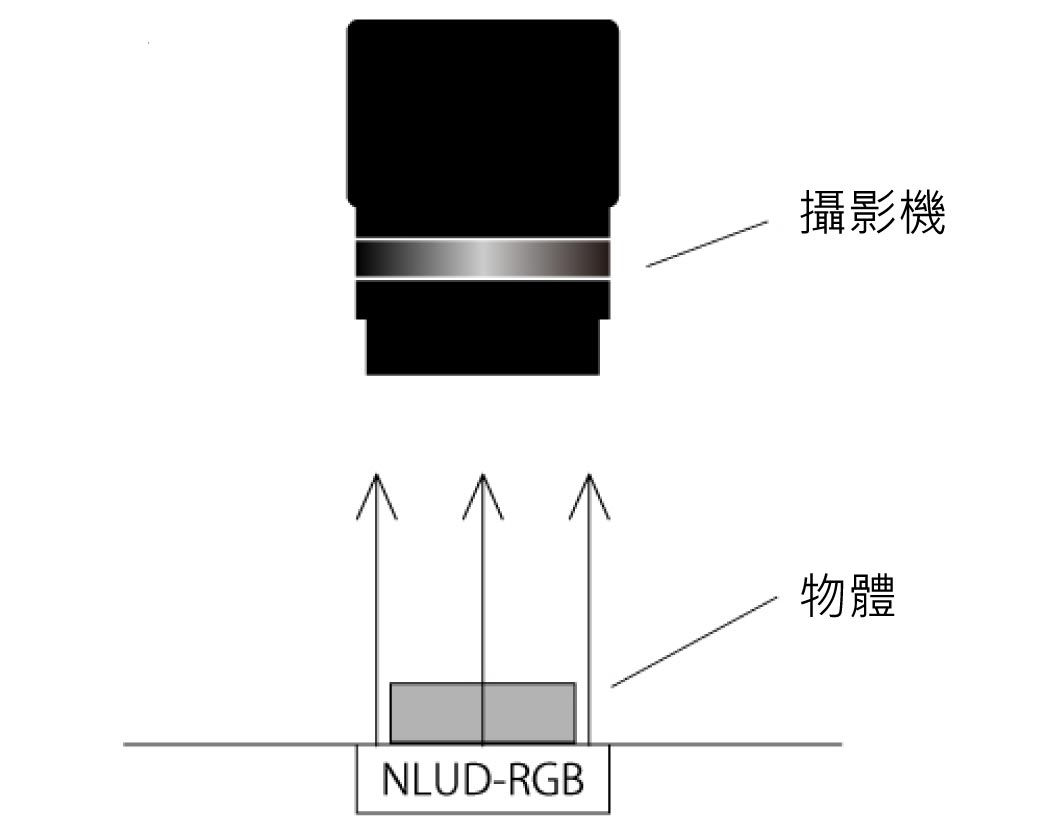

Imaging examination lighting
Place a lighting device on the back of the object to be inspected (such as a lens or glass) to take photos. You can check more clearly by adding photographic lens image processing.
Physical photography-appearance inspection
Photograph scratches on glossy stainless steel using white and colored light and view them
from the same angle.
When exposed to white light, scratches are not clear, and colored
light makes it easier to see scratches.

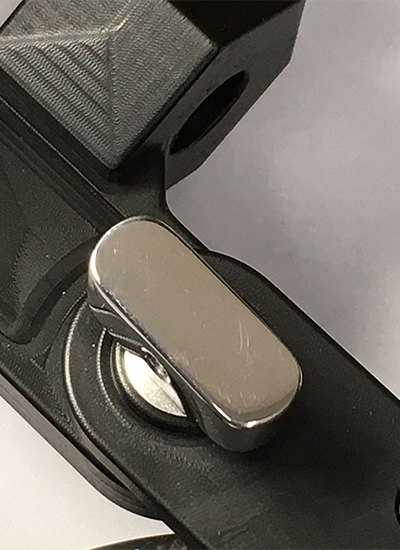

White light irradiation

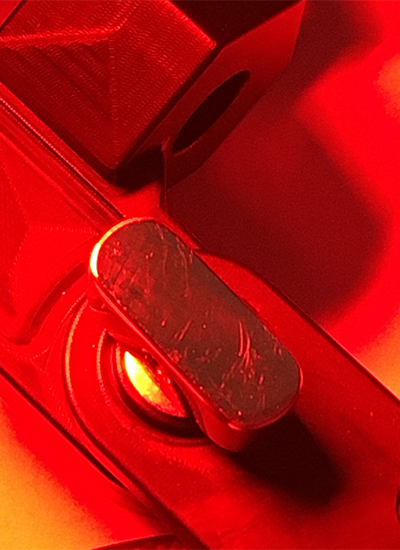

Red light irradiation

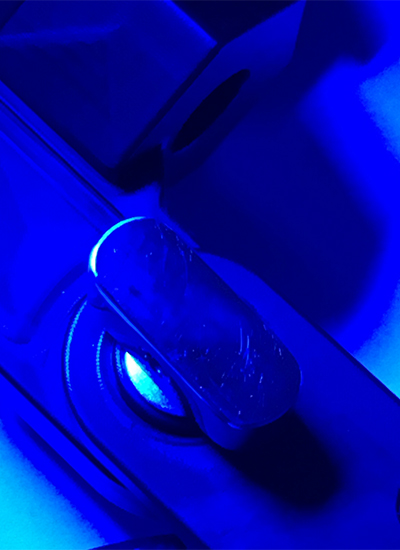

blue light exposure

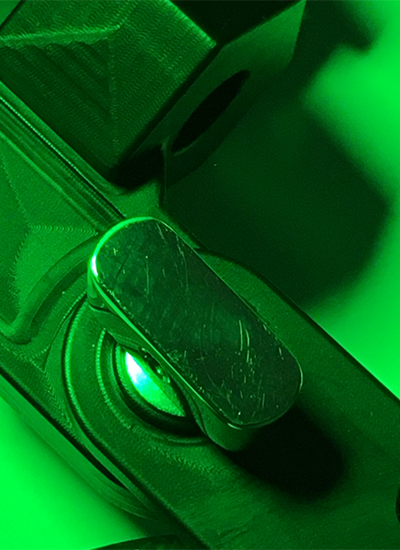

green light irradiation
Actual shooting test - image processing check
Check the lens for scratches and dirt, place the NLUD120-15(G)-AC (green light) on the back,
and shoot from the top. Reproduce image processing check.
You can check the difference in
the appearance of scratches and dirt based on contrast intensity.

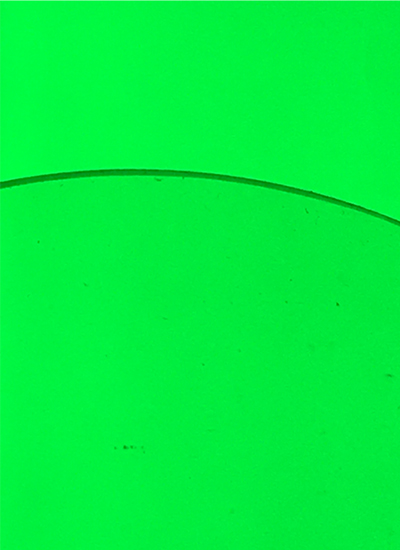

Original shooting image

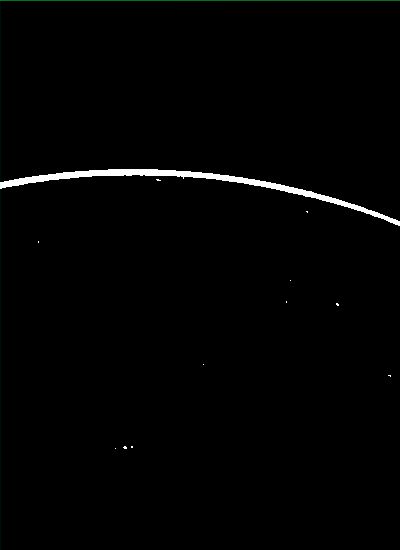

Contrast weak
Contrast

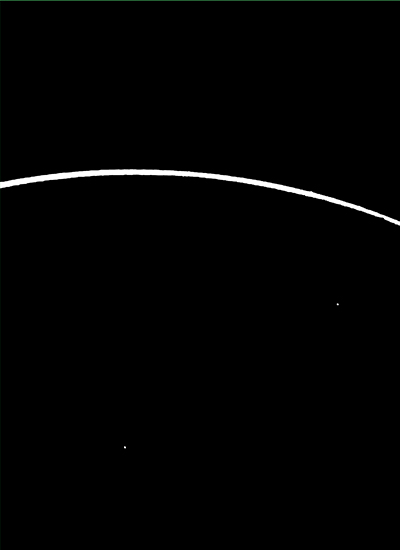

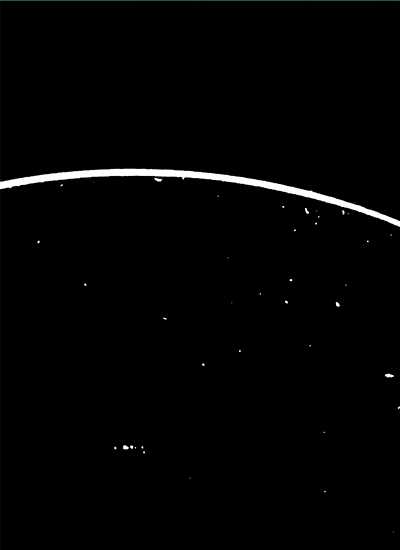

Contrast strong
Standard model list (DC)
| model | drawing | Luminous flux | Illuminance (1m) | wavelength | power supply | Power consumption | Install base |
|---|---|---|---|---|---|---|---|
| NLUD05(R)-DC | PDF DXF | 110 lm | 55 lx | 630 nm | DC24V | 4W | Pan head screw hole M4X2 Powerful magnets (2 pcs on the back) |
| NLUD05(G)-DC | PDF DXF | 330 lm | 170 lx | 518 nm | 6W | ||
| NLUD05(B)-DC | PDF DXF | 88 lm | 45 lx | 465 nm | 5W | ||
| NLUD10(R)-DC | PDF DXF | 250 lm | 130 lx | 630 nm | 7W | ||
| NLUD10(G)-DC | PDF DXF | 620 lm | 300 lx | 518 nm | 11W | ||
| NLUD10(B)-DC | PDF DXF | 200 lm | 100 lx | 465 nm | 9.5W | ||
| NLUD20(R)-DC | PDF DXF | 330 lm | 160 lx | 630 nm | 11W | ||
| NLUD20(G)-DC | PDF DXF | 840 lm | 410 lx | 518 nm | 16W | ||
| NLUD20(B)-DC | PDF DXF | 270 lm | 130 lx | 465 nm | 14W | ||
| NLUD30(R)-DC | PDF DXF | 440 lm | 220 lx | 630 nm | 15.5W | ||
| NLUD30(G)-DC | PDF DXF | 1,320 lm | 600 lx | 518 nm | 24.5W | ||
| NLUD30(B)-DC | PDF DXF | 350 lm | 160 lx | 465 nm | 21.5W | ||
| NLUD120-15(R)-DC | PDF DXF | 230 lm | 115 lx | 630 nm | 12W | Pan head screw hole M4X2 Powerful magnets (4 pcs on the back) |
|
| NLUD120-15(G)-DC | PDF DXF | 610 lm | 315 lx | 518 nm | |||
| NLUD120-15(B)-DC | PDF DXF | 168 lm | 85 lx | 465 nm | |||
| NLUD120-25(R)-DC | PDF DXF | 490 lm | 240 lx | 630 nm | 16W | ||
| NLUD120-25(G)-DC | PDF DXF | 1,260 lm | 610 lx | 518 nm | 24W | ||
| NLUD120-25(B)-DC | PDF DXF | 420 lm | 200 lx | 465 nm | 21W | ||
| NLUD120-35(R)-DC | PDF DXF | 660 lm | 330 lx | 630 nm | 22W | ||
| NLUD120-35(G)-DC | PDF DXF | 1,900 lm | 1,000 lx | 518 nm | 32W | ||
| NLUD120-35(B)-DC | PDF DXF | 520 lm | 270 lx | 465 nm | 28W | ||
| NLUD120-45(R)-DC | PDF DXF | 880 lm | 440 lx | 630 nm | 31W | ||
| NLUD120-45(G)-DC | PDF DXF | 2,640 lm | 1,300 lx | 518 nm | 49W | ||
| NLUD120-45(B)-DC | PDF DXF | 700 lm | 360 lx | 465 nm | 43W |

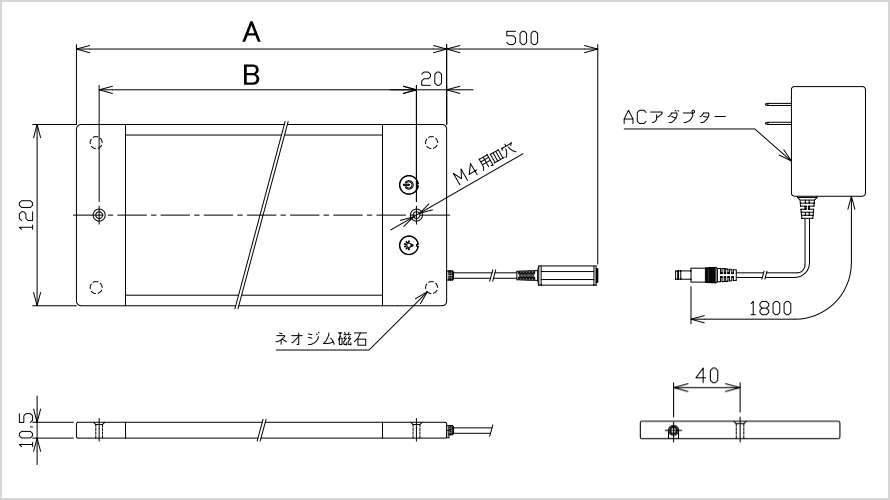

Dimensional drawing (DC)

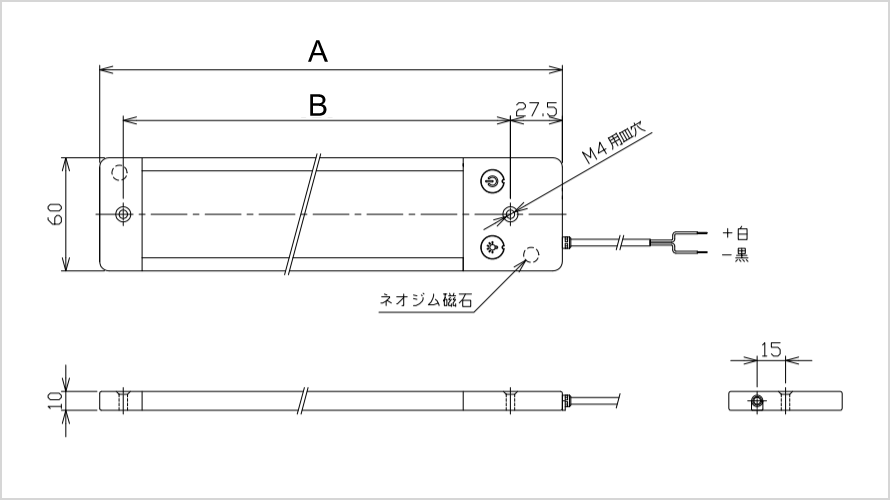

NLUD05/10/20/30(RGB)-DC
| Model/size (mm) | A | B |
|---|---|---|
| NLUD05 | 245 | 205 |
| NLUD10 | 420 | 380 |
| NLUD20 | 565 | 525 |
| NLUD30 | 730 | 690 |

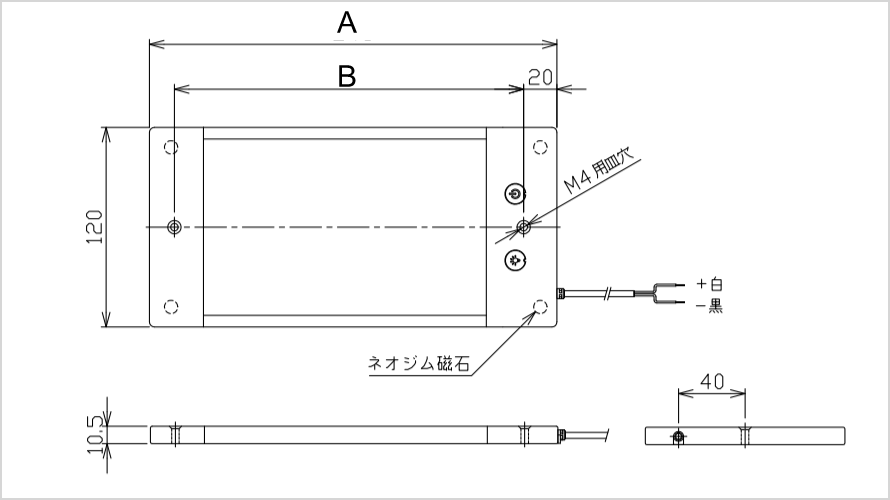

NLUD 120-15/120-35/120-45(RGB) DC
| Model/size (mm) | A | B |
|---|---|---|
| NLUD120-15 | 245 | 210 |
| NLUD120-25 | 420 | 385 |
| NLUD120-35 | 565 | 530 |
| NLUD120-45 | 730 | 695 |
Standard model list (AC)
| model | drawing | Luminous flux | Illuminance (1m) | wavelength | power supply | Power consumption | Install base |
|---|---|---|---|---|---|---|---|
| NLUD05(R)-AC | PDF DXF | 110 lm | 55 lx | 630 nm | AC100V - 240V | 4.5W | Pan head screw hole M4X2 Powerful magnets (2 pcs on the back) |
| NLUD05(G)-AC | PDF DXF | 320 lm | 160 lx | 518 nm | 6.5W | ||
| NLUD05(B)-AC | PDF DXF | 90 lm | 40 lx | 465 nm | 5.5W | ||
| NLUD10(R)-AC | PDF DXF | 250 lm | 130 lx | 630 nm | 8W | ||
| NLUD10(G)-AC | PDF DXF | 620 lm | 300 lx | 518 nm | 12W | ||
| NLUD10(B)-AC | PDF DXF | 200 lm | 100 lx | 465 nm | 10.5W | ||
| NLUD20(R)-AC | PDF DXF | 330 lm | 160 lx | 630 nm | 12.5W | ||
| NLUD20(G)-AC | PDF DXF | 840 lm | 410 lx | 518 nm | 18W | ||
| NLUD20(B)-AC | PDF DXF | 270 lm | 130 lx | 465 nm | 16W | ||
| NLUD30(R)-AC | PDF DXF | 440 lm | 220 lx | 630 nm | 17.5 W | ||
| NLUD30(G)-AC | PDF DXF | 1,320 lm | 600 lx | 518 nm | 26.5W | ||
| NLUD30(B)-AC | PDF DXF | 350 lm | 160 lx | 465 nm | 23.5W | ||
| NLUD120-15(R)-AC | PDF DXF | 230 lm | 110 lx | 630 nm | 14W | Pan head screw hole M4X2 Powerful magnets (4 pcs on the back) |
|
| NLUD120-15(G)-AC | PDF DXF | 610 lm | 310 lx | 518 nm | |||
| NLUD120-15(B)-AC | PDF DXF | 160 lm | 80 lx | 465 nm | |||
| NLUD120-25(R)-AC | PDF DXF | 490 lm | 240 lx | 630 nm | 16W | ||
| NLUD120-25(G)-AC | PDF DXF | 1,260 lm | 610 lx | 518 nm | 24W | ||
| NLUD120-25(B)-AC | PDF DXF | 420 lm | 200 lx | 465 nm | 21W | ||
| NLUD120-35(R)-AC | PDF DXF | 660 lm | 330 lx | 630 nm | 22W | ||
| NLUD120-35(G)-AC | PDF DXF | 1,900 lm | 1,000 lx | 518 nm | 32W | ||
| NLUD120-35(B)-AC | PDF DXF | 520 lm | 270 lx | 465 nm | 28W | ||
| NLUD120-45(R)-AC | PDF DXF | 880 lm | 440 lx | 630 nm | 31W | ||
| NLUD120-45(G)-AC | PDF DXF | 2,640 lm | 1,300 lx | 518 nm | 49W | ||
| NLUD120-45(B)-AC | PDF DXF | 700 lm | 360 lx | 465 nm | 43W |

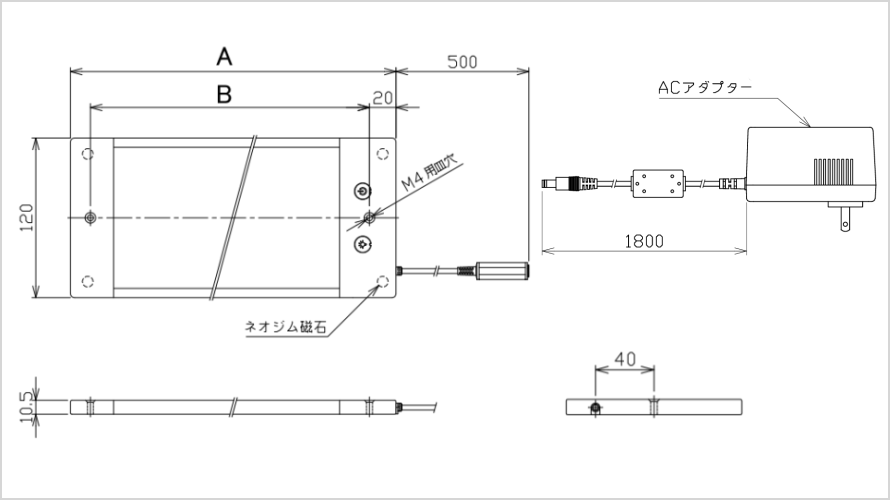

Dimensional drawing (AC)

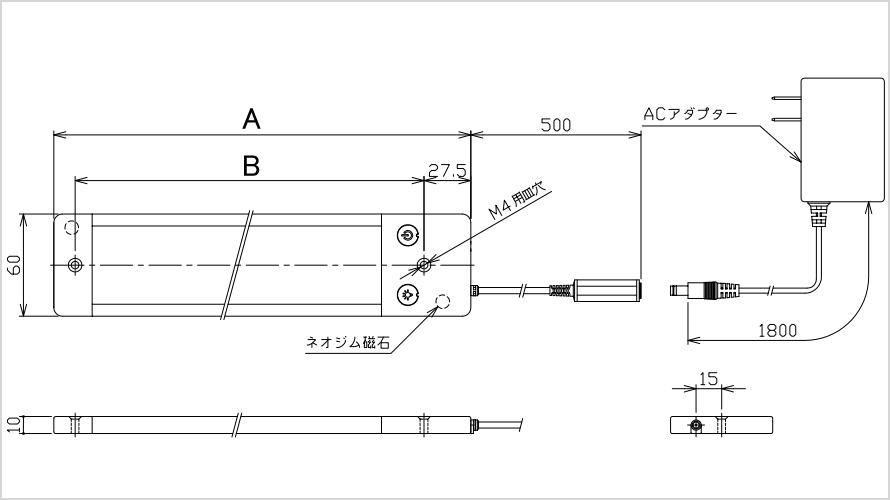

NLUD 05/10/20/30(RGB)-AC
| Model/size (mm) | A | B |
|---|---|---|
| NLUD05 | 245 | 205 |
| NLUD10 | 420 | 380 |
| NLUD20 | 565 | 525 |
| NLUD30 | 730 | 690 |
NLUD120-15(RGB)-AC
| Model/size (mm) | A | B |
|---|---|---|
| NLUD120-15 | 245 | 210 |
NLUD120-25/35/45(RGB)-AC
| Model/size (mm) | A | B |
|---|---|---|
| NLUD120-25 | 420 | 385 |
| NLUD120-35 | 565 | 530 |
| NLUD120-45 | 730 | 695 |
Model selection method
| model | size | Luminous color | power supply |
|---|---|---|---|
| NLUD |
|
|
|
