Surface emitting LED lighting

(NLU series)

Product list

NLU series

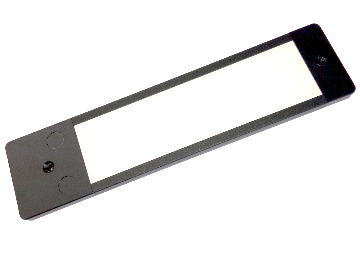

MAIN product image

Feature

LED's unique non-glare surface-emitting lighting lamp emits uniform and natural light, and your eyes will not feel tired after long-term use.

Because light does not reflect easily, you can easily see what you want to see; ideal for inspection lighting.

The built-in magnet on the back can be used by sticking to metal parts.

Applicable

Visual inspection lighting, image inspection lighting, simple task lighting, image inspection lighting, display display lighting

Specification

color temperature 5,700K
life expectancy Ambient temperature 25℃ 60,000 hours
※Life span is based on initial illumination reduced to 70%
Use temperature -10℃～40℃ (when not freezing)
protection level IP50
Color rendering Ra80
Standard wiring DC = 3m(AWG26x2C)
AC = 2.3m (with AC/DC power supply)
Certification ce FCC
Select accessories Switch control line (ND-SW01)

NLU surface emitting LED lighting purchase manual

Comparison example between other brand LED lights and Japanese NLUD

Other brands of LED

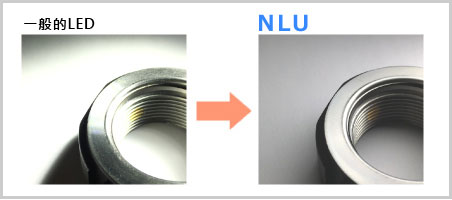

▲Other brands of LED lights tend to produce shadows

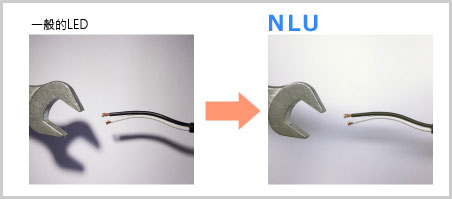

LED overlay comparison
▲NLUD is not easy to produce shadows

Gentle light source without flicker

The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.

The NLU (NLUD) series adopts an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.

※The picture below shows the situation under NLU series light source.

Comparison between Japanese lighting and general LED 1 [General LED] Flickers and streaks may be observed during photography
Comparison between Japanese lighting and general LED 2 [NLU Series] Mild and even light, no flicker

List of standard models (DC)

model drawing Luminous flux Illuminance (1m) power supply Power consumption Fixed method
NLU05-DC PDF DXF 540 lm 280 lx DC24V 4W Pan head screw hole M4X2
Powerful magnets (2 pcs on the back)
NLU10-DC PDF DXF 1,050 lm 530 lx 12W
NLU20-DC PDF DXF 1,600 lm 800 lx 19W
NLU30-DC PDF DXF 2,000 lm 1,000 lx 21W
NLU120-15-DC PDF DXF 1,130 lm 570 lx 11.5W Pan head screw hole M4X2
Powerful magnets (4 pcs on the back)
NLU120-25-DC PDF DXF 2,080 lm 1,030 lx 22.5W
NLU120-35-DC PDF DXF 3,200 lm 1,500 lx 37.5W
NLU120-45-DC PDF DXF 4,000 lm 2,000 lx 42.5W

Light distribution curve data

NLU05

NLU05 light distribution curve
Picture view

NLU10

NLU10 light distribution curve
Picture view

NLU20

NLU20 light distribution curve
Picture view

NLU30

NLU30 light distribution curve
Picture view

NLU120-15

NLU120-15 light distribution curve
Picture view

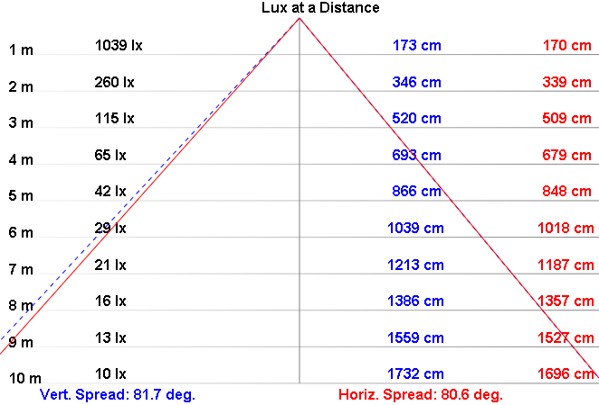

NLU120-25

NLU120-25 light distribution curve
Picture view

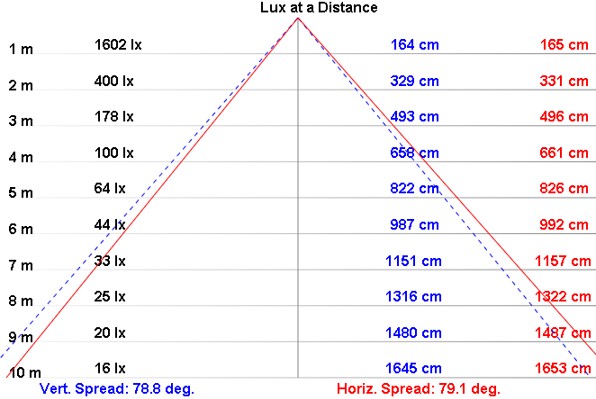

NLU120-35

NLU120-35 light distribution curve
Picture view

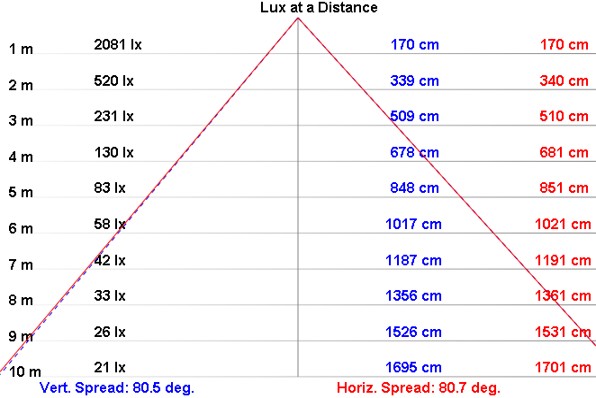

NLU120-45

NLU120-45 light distribution curve
Picture view

Dimensional drawing (DC)

NLU 05/10/20/30 DC

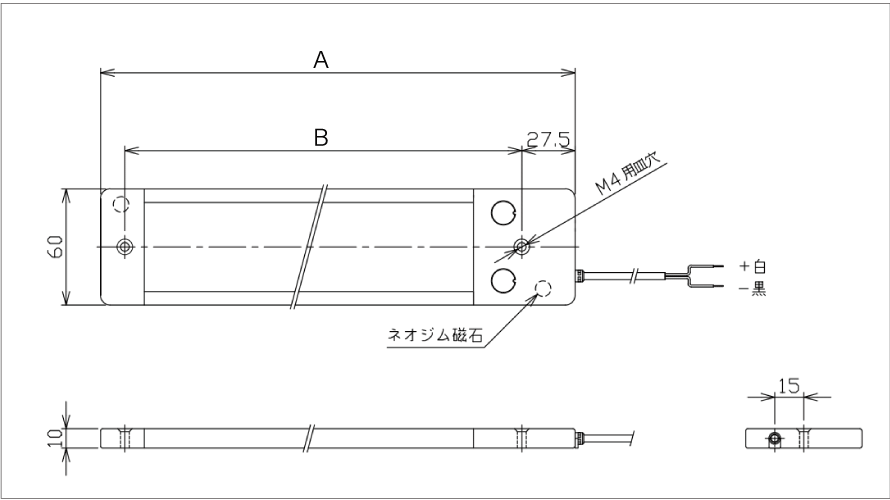

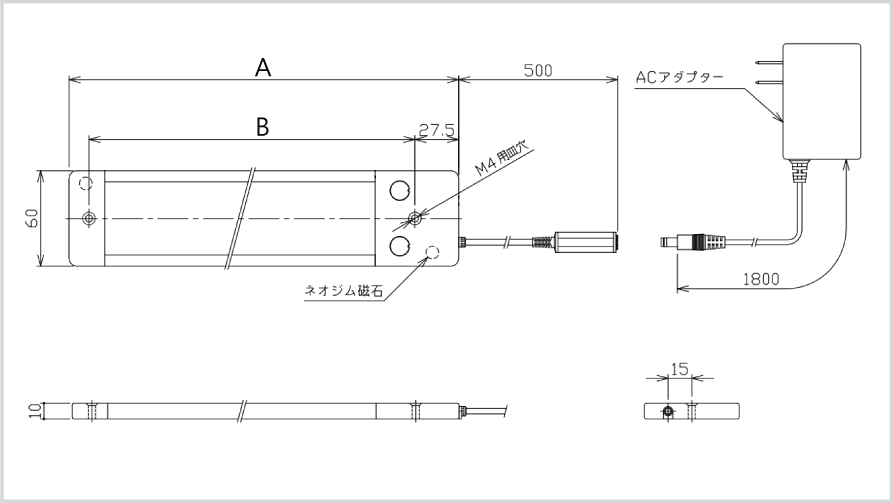

NLU05-AC Dimensional Drawing

Model/size (mm) A B
NLU05 245 205
NLU10 420 380
NLU20 565 525
NLU30 730 690

NLU 120-15/25/35/45 DC

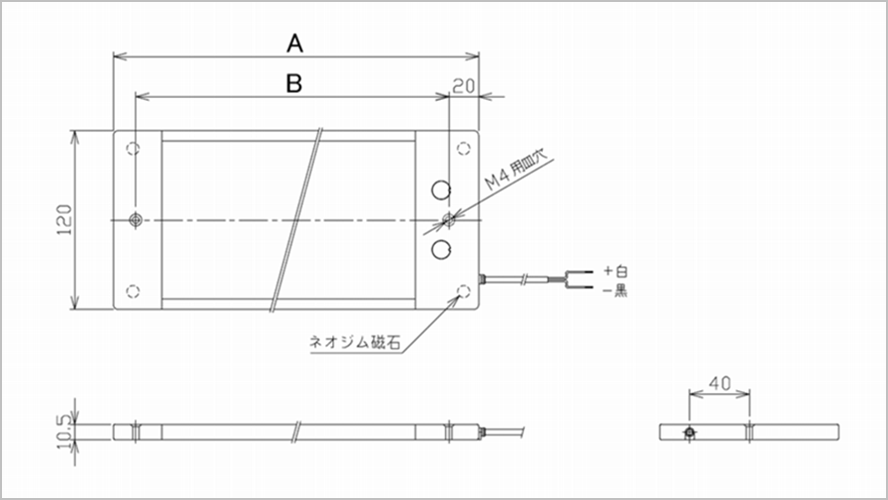

NLU30-DC size

Model/size (mm) A B
NLU120-15 245 210
NLU120-25 420 385
NLU120-35 565 535
NLU120-45 730 695

List of standard models (AC)

model drawing Luminous flux Illuminance (1m) power supply Power consumption Fixed method
NLU05-AC PDF DXF 540 lm 280 lx AC100-240V 5W Pan head screw hole M4X2
Powerful magnets (2 pcs on the back)
NLU10-AC PDF DXF 1,050 lm 530 lx 14W
NLU20-AC PDF DXF 1,600 lm 800 lx 21W
NLU30-AC PDF DXF 1,900 lm 1,030 lx 23W
NLU120-15-AC PDF DXF 1,130 lm 570 lx 13.5W Pan head screw hole M4X2
Powerful magnets (4 pcs on the back)
NLU120-25-AC PDF DXF 2,080 lm 1,030 lx 24.5W
NLU120-35-AC PDF DXF 3,200 lm 1,500 lx 39.5W
NLU120-45-AC PDF DXF 4,000 lm 2,000 lx 44.5W

Dimensional drawing (AC)

NLU 05/10/20/30 AC

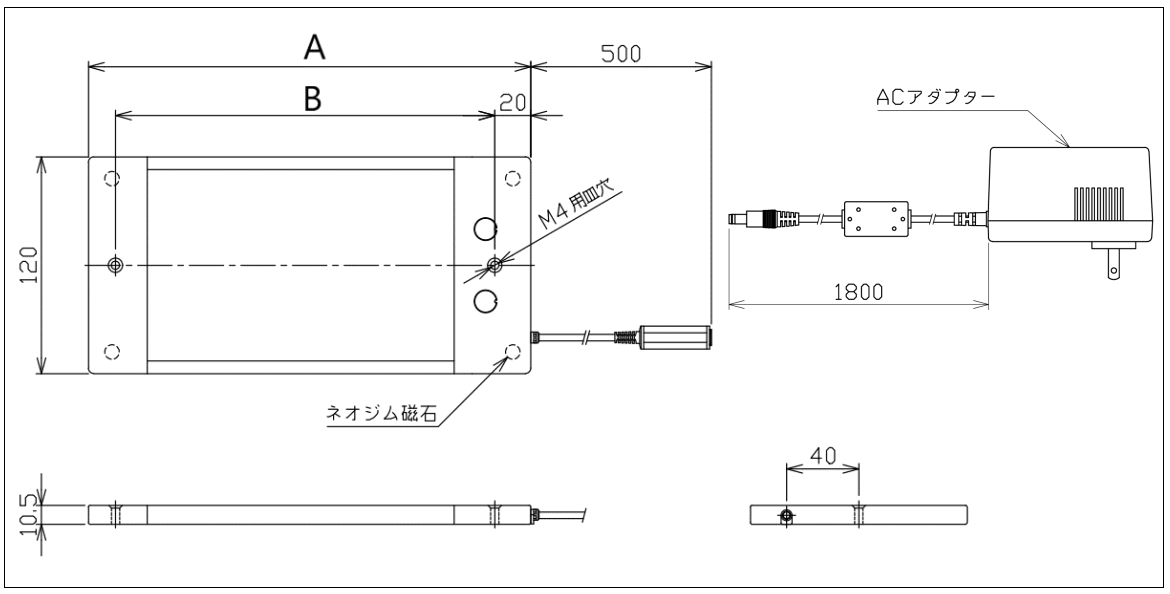

NLU05-DC dimension drawing

Model/size (mm) A B
NLU05 245 205
NLU10 420 380
NLU20 565 525
NLU30 730 690

NLU 120-15/25 AC

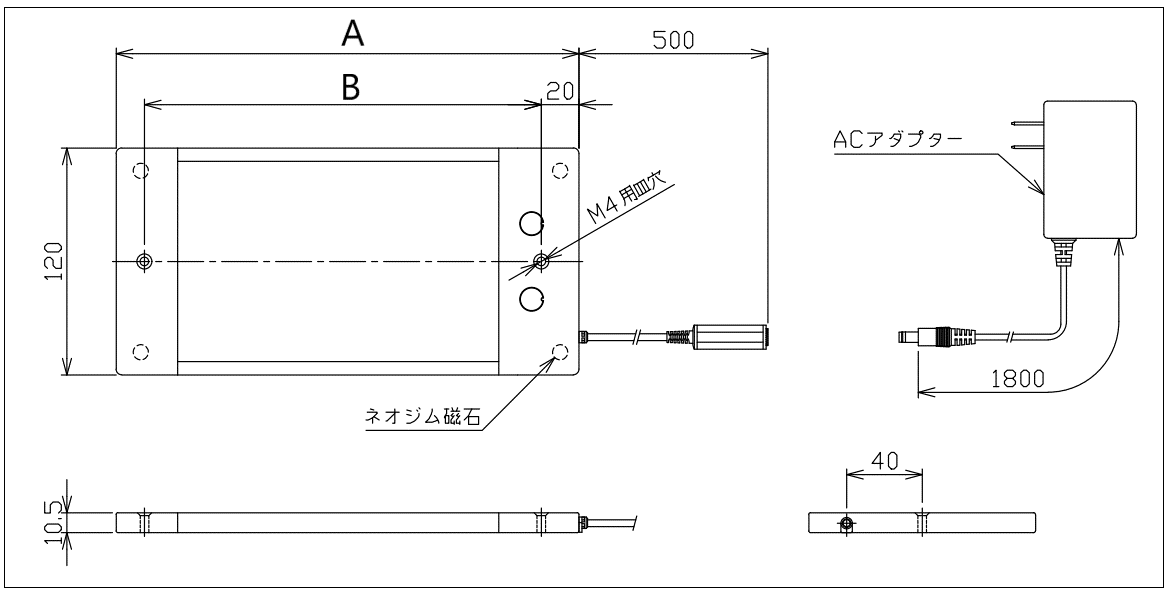

NLU05-DC dimension drawing

Model/size (mm) A B
NLU 120-15 245 210
NLU 120-25 420 385

NLU 120-35/45 AC

NLU05-DC dimension drawing

Model/size (mm) A B
NLU120-35 565 535
NLU120-45 730 695

Select accessories


Series selection method

model size power supply Optional
NLU
  • 05
  • 10
  • 20
  • 30
  • 120-15
  • 120-25
  • 120-35
  • 120-45
  • DC
    =DC24V
  • AC
    =AC100V - 240V (AC/DC power supply)
  • Switch control line (ND-SW01)
