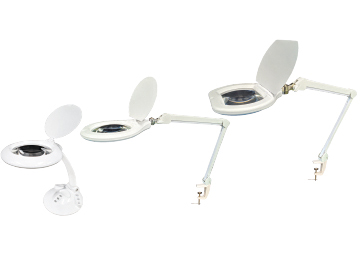

NLLP series
Video introduction
Feature
The magnifying glass work light uses large white optical glass to provide clarity and comfort when reading. It has two magnifications of 1.75 and 2.25 times.
The uniformity of the LED light-emitting surface is also a major feature of our magnifying lamps. The uniformity of the light source of ordinary LED magnifying lamps is not good and granular. The overall glossy surface of our magnifying lamps is uniform and non-glaring. This design is especially important when observing metal surfaces, because LED magnifying glass lamps with uneven glossy surfaces will produce uneven light and dark light patterns on the metal surface, making it impossible to correctly observe scratches or small dents on the metal surface.
The glass mirror adopts white optical glass lens, which is characterized by being clear and transparent without color cast, allowing the real image of the observed object to be truly presented without distortion.

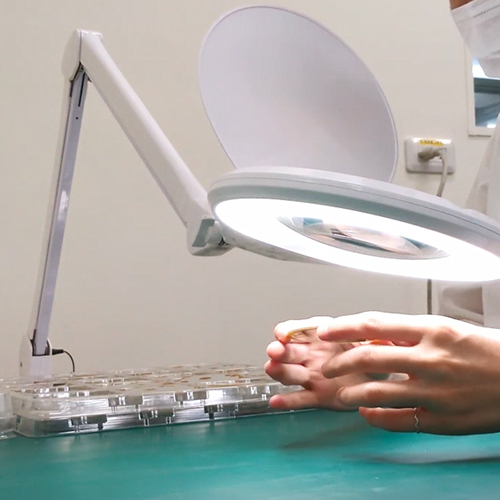

Suitable for visual inspection
Japan's LED magnifying glass has uniform light, no flicker, and no streaks.

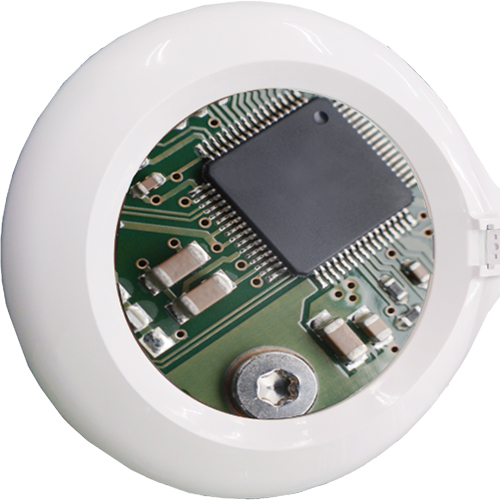

LED magnifying
glass is great for taking photos of inspecting products.
When photographing metal surfaces, the light is even and soft, with no flicker or streaks.
The surface illuminated by the LED may reflect light, and flicker and stripe patterns may appear.
Applicable
Visual inspection lighting, precision work inspection lighting.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ |
| Power consumption | 7.5W/8W/12.5W |
| mirror | Optical white glass |
| times ratio | 1.75 times / 2.25 times |
| Use light source | White LED |
| Dimming method | Stepless dimming (20-100%) |
| Accessories | Wall-mounted AC/DC power supply (ND-PM243) |
| input voltage | AC100 - 240V (AC/DC power supply) |
| input voltage |  (power supply) |
Comparison of optical white glass and blue glass
Our company's LED magnifiers use optical white glass. Generally, the windows of buildings use blue glass because they are manufactured in large quantities and are cheap.
It can be seen from the cross section that cyan glass is cyan because iron and other impurities are mixed in the glass. If a large amount of cyan glass with poor transparency is used, it will appear cyan.
Unable to see objects clearly. Therefore, our company's magnifying glasses use high-transparency optical white glass.
Optical white glass
Comfortable text reading
blue glass
Text cannot be read
clearly
Main applications

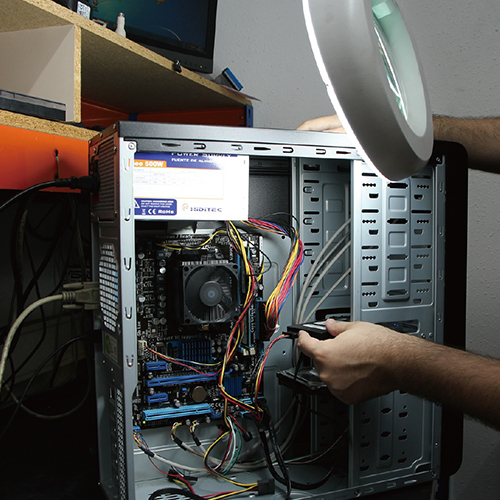

Maintenance inspection
Visual inspection
precision work
Standard model list
| model | drawing | Mirror size | magnification | Luminous flux | Illumination (distance) | Power consumption | weight | Fixed method |
|---|---|---|---|---|---|---|---|---|
| NLLP50ST-3D | PDF DXF | ø5" | 1.75x | 1,100 lm | 8,700 lx （20cm） | 7.5W | 2.5kg | desktop |
| NLLP50ST-5D | PDF DXF | 2.25x | 3,800 lx （30cm） | |||||
| NLLP60BT-3D | PDF DXF | ø6" | 1.75x | 960 lm | 8,800 lx （20cm） | 8W | 2.3kg | C-clip Maximum thickness 60mm |
| NLLP60BT-5D | PDF DXF | 2.25x | 3,900 lx （30cm） | |||||
| NLLP70BT-3D | PDF DXF | 7" × 5.2" | 1.75x | 1,500 lm | 12,200 lx （20cm） | 12.5W | 3.1 kg |
Dimensional drawing

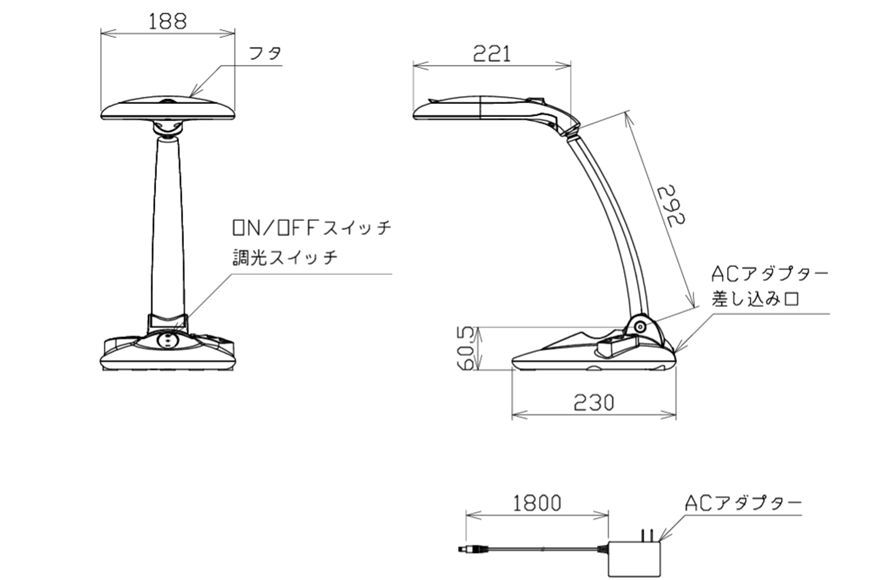

NLLP50ST

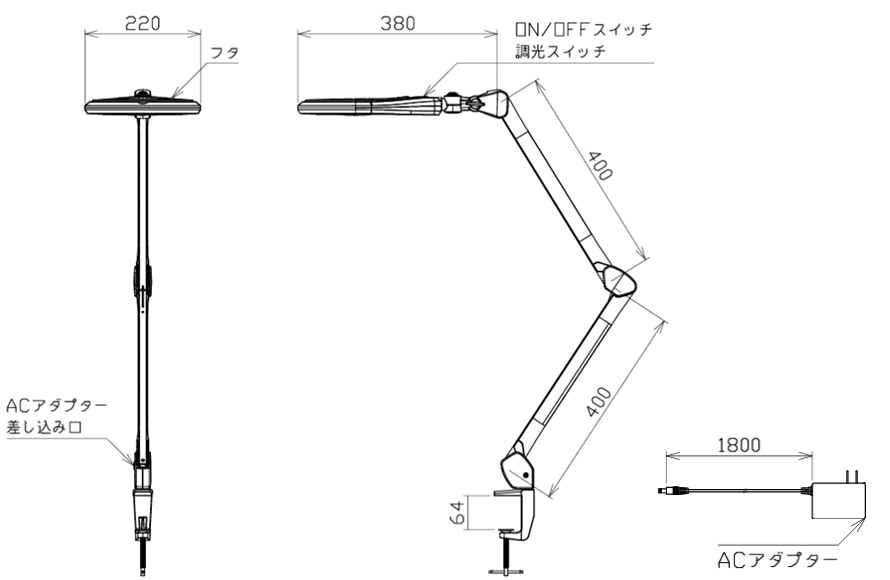

NLLP60BT

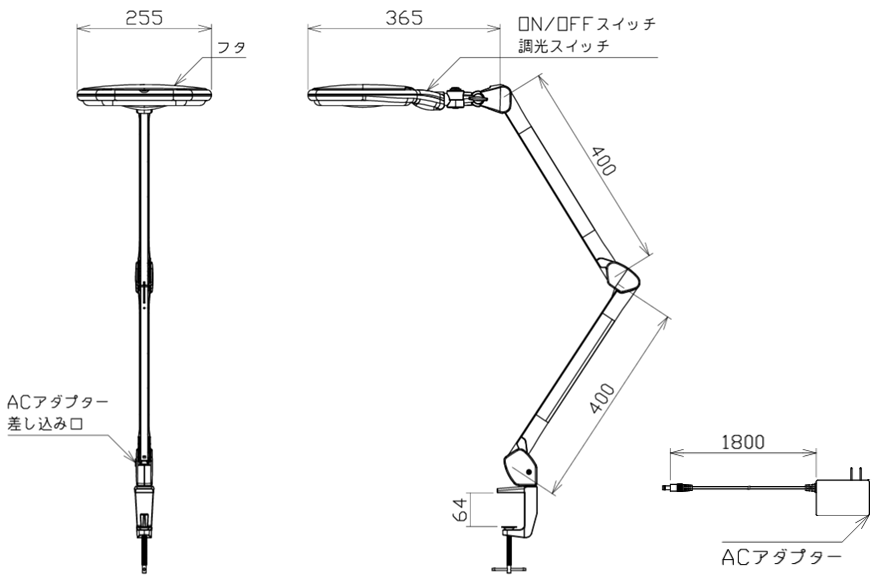

NLLP70BT
Accessories
-
AC/DC power supply
- Model: ND-PM243
- Certification: PSE FCC
- Input voltage: AC100～240V
- Output voltage: DC24V
- Output power: maximum 24W
- Wire length: 1.8m
- Output plug shape: DCΦ5.5×2.5mm
- ※Drawing "Wear it down"
