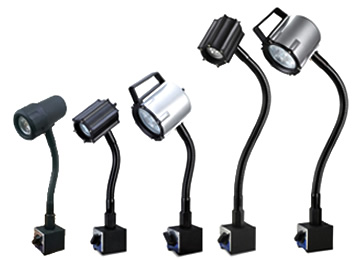

BM series magnetic base NLS spotlight
Feature
High-power LEDs are used to achieve energy saving, high brightness and long service life.
Magnetic base design allows it to be easily fixed to or removed from metal parts such as iron plates.
In addition, it is equipped with a cord with plug and an AC power supply as standard, which makes it easy to move and has a wide range of uses in work.
Applicable
Work machinery lighting fixtures, inspection work lighting, quality control inspection lighting, welding work lighting (NLS05 recommendation)
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 25℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| Standard wiring | AC/DC power supply |
| protection level | 03 series IP65 (inside the lamp head) 05/15 series IP67 (inside the lamp head) |
| certification |
 (power supply)
|
| magnetic attraction | 800N |
| Choose and match | Color temperature=4000K |
Gentle light source without flicker
The safe flicker rate recommended in IEEE 1789 (Standard for Effects and Evaluation of Lighting Flicker) is 8%, while flicker is almost undetectable to the human eye at about 3%.
The BM series adopts an exclusive design to further reduce the flicker rate to less than 2%. Not only will there be no flicker at all when shooting general still photos and videos, but it can also use 240fps There will be no stripe flicker when shooting with high frame rate equipment. It is very suitable for application scenarios such as image inspection and appearance inspection that require high-precision photography or long-term naked eye observation.
※The picture below shows the situation under the BM series light source.
[General LED] Flickers and streaks may be observed during photography
[BM Series] Mild and even light, no flicker
5700K (standard) and 4000K (optional) color temperature comparison table
Depending on the working environment and the content of the exposure, choose between 5700K and 4000K color temperatures.
Prevent electromagnetic interference at the welding site

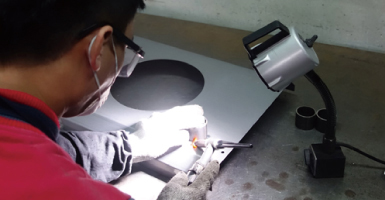

LED lighting for welding
The workpiece can be clearly seen even under strong light during the welding process.
(※Magnetic base work light, convenient for moving position.)
Standard model list
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLSS03CBM-AC | PDF DXF | 510 lm | 1,750 lx | AC100V | 5W |
| NLSS03CBM4-AC | PDF DXF | ||||
| NLSS15CBM-AC | PDF DXF | 770 lm | 4,160 lx | 7W | |
| NLSS15CBM3-AC | PDF DXF |
List of AC/DC power supply models
| model | drawing | Luminous flux | Illuminance (1m) | power supply | Power consumption |
|---|---|---|---|---|---|
| NLSS03CBM-AC (AD) | PDF DXF | 510 lm | 1,780 lx | AC100 - 240V (AC/DC power supply) |
5W |
| NLSS03CBM4-AC (AD) | PDF DXF | ||||
| NLSS05CBM-AC (AD) | PDF DXF | ||||
| NLSS05CBM4-AC (AD) | PDF DXF | ||||
| NLSS15CBM-AC (AD) | PDF DXF | 770 lm | 4,160 lx | 7W | |
| NLSS15CBM3-AC (AD) | PDF DXF |
Dimensional drawing

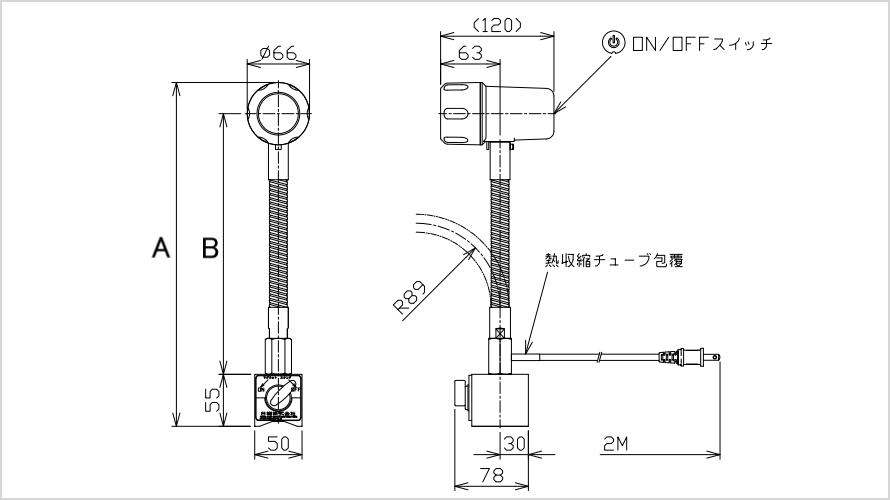

NLSS03CBM-AC / NLSS03CBM4-AC
| Model/size (mm) | A | B |
|---|---|---|
| NLSS03CBM | 364 | 276 |
| NLSS03CBM4 | 564 | 476 |

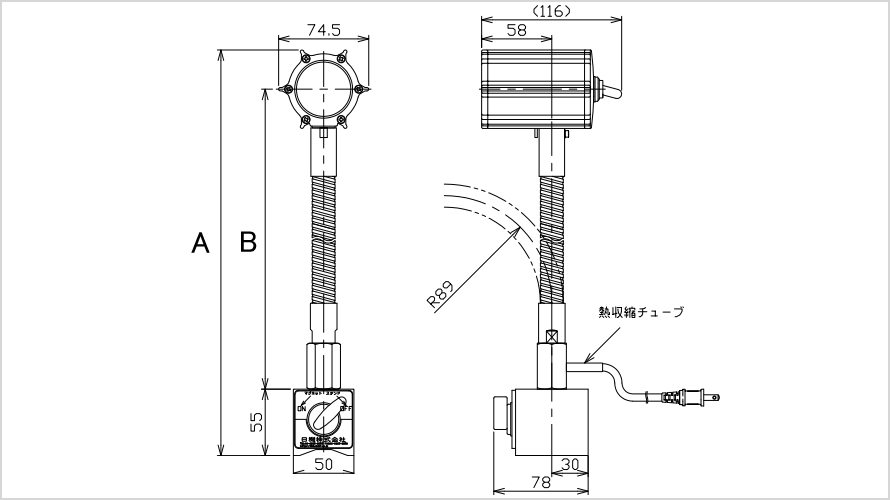

NLSS05CBM-AC / NLSS05CBM4-AC
| Model/size (mm) | A | B |
|---|---|---|
| NLSS05CBM | 366 | 278 |
| NLSS05CBM4 | 566 | 478 |

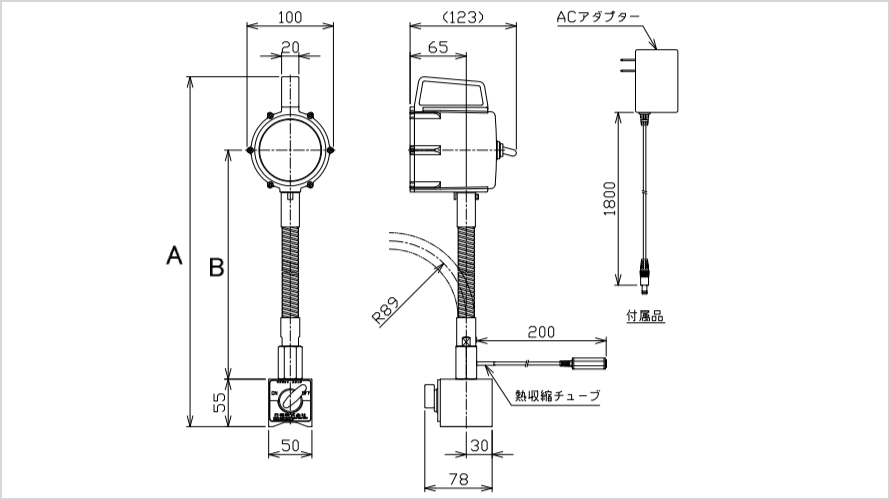

NLSS15CBM-AC(AD) / NLSS15CBM3-AC(AD)
| Model/size (mm) | A | B |
|---|---|---|
| NLSS15CBM（AD） | 435 | 295 |
| NLSS15CBM3（AD） | 535 | 395 |

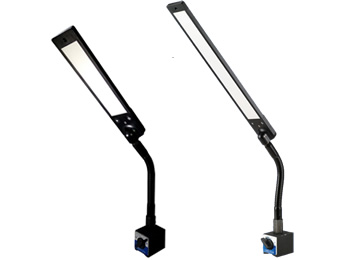

BM Series - Surface Luminous
Feature
LED work light with magnetic base. Can be adsorbed on iron plates and other metals.
Surface-emitting LED lighting with dimming function; touch-sensitive dimming design with no stage dimming in the range of 20% to 100%.
With a brightness storage function, the brightness can be reproduced when the power is turned off and on again. (If the electrical outlet is unplugged, the lighting brightness storage record will be reset.)
LED's unique non-glare surface emitting lighting emits evenly and naturally, so your eyes will not feel tired even if used for a long time.
Since light does not easily reflect, you can easily see what you want to see; ideal for inspection lighting.
Dimming function
Dimmer switch (left): It can be dimmed from 20% brightness to 100% brightness, with
cyclic adjustment.
Power switch (right): Turns ON/OFF with just a light touch.
Applicable
Visual inspection lighting, simple task lighting, image inspection lighting, display display lighting, etc.
Specification
| color temperature | 5,700K |
|---|---|
| life expectancy | Ambient temperature 40℃ 60,000 hours ※Life span is based on initial illumination reduced to 70% |
| Use temperature | -10℃～40℃ (referring to the condition without freezing) |
| power supply | AC (alternating current power) |
| Standard wiring | AC/DC power supply (AC100 - 240V power supply/cord length 2m) |
| protection level | IP50 |
| certification |
 (power
supply)
|
| Color rendering | Ra80 |
Comparative examples of LED lights from other brands and Japanese NLUD
▲Other brands of LED lights tend to produce shadows
▲NLUD is not easy to produce shadows
Dimensional drawing

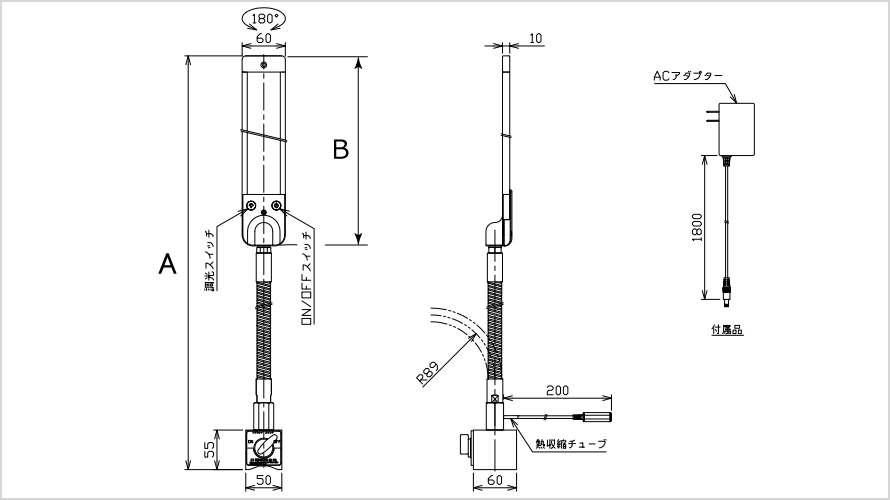

NLUD05 / 10
| Model/size (mm) | A | B |
|---|---|---|
| NLUD05BM | 575 | 308 |
| NLUD05BM4 | 775 | 308 |
| NLUD10BM | 750 | 483 |
| NLUD10BM4 | 950 | 483 |
